What the integrated driver means for your BOM

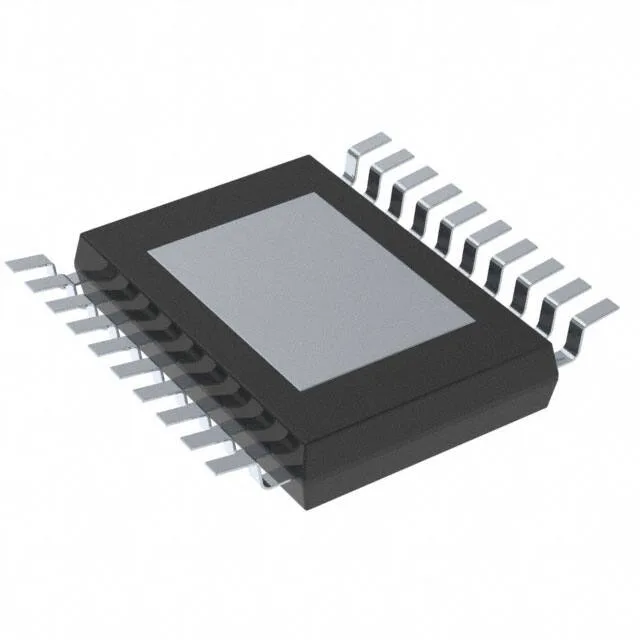

The BD68610EFV-E2: The BD68610EFV- is a fully integrated bipolar stepper motor driver that combines the control logic and DMOS power stage in one 20-pin HTSSOP package — no external FETs or gate-drive components are needed for the motor bridge. Rated for 600 mA continuous output current per winding, it drives small-frame bipolar steppers typical in positioning stages, labelers, and pump actuators where the load torque stays under the 600 mA ceiling. The supply and load voltage share a common 19 V to 28 V rail, so a single unregulated supply powers both the logic and the motor — no separate low-voltage rail for the control section.
Step resolution and microstepping trade-offs
The driver supports full-step, half-step, and quarter-step resolution selected through the parallel interface — no SPI or I²C configuration needed, just logic levels on the step-mode pins. Quarter-step (1/4) gives smoother low-speed rotation and reduces mid-band resonance compared to full-step, but at the cost of 30% less holding torque per microstep — a trade-off that matters for applications that must hold position without a mechanical brake.
Thermal management with the exposed pad
Operating temperature range is -25°C to 85°C ambient, which covers most indoor industrial enclosures but not extended outdoor or under-hood automotive environments.
ROHS3 compliant, which covers the full ten restricted substances including the four phthalates — acceptable for EU, UKCA, and most global regulatory markets without an exemption review.
