ROHM Semiconductor BD3570YHFP-MTR — Discrete Semiconductors
ROHM Semiconductor

ROHM BD3570YHFP-MTR LDO Regulator, 3.3V Fixed, 500mA

MPNBD3570YHFP-MTR
End of Life

ROHM Semiconductor BD3570YHFP-MTR LDO linear regulator, fixed 3.3 V output, 500 mA, TO-263-6 D²Pak, surface mount, active.

$3.18Ref. price · indicative, final on quote
BD3570YHFP-MTR datasheet
PackagingTO-263-6, D²Pak (5 Leads + Tab), TO-263BA
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

BD3570YHFP-MTR Technical Specifications
ParameterValue
Output typeFixed
Mounting typeSurface Mount
Voltage - input36V
Voltage dropout0.48V @ 200mA
Voltage - output (Min (Fixed))3.3V
Current - output500mA
Current - quiescent50 µA
Operating temperature-40°C ~ 125°C (TA)
PSRR55dB (120Hz)
PackageTape & Reel (TR); Cut Tape (CT)
CaseTO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Protection featuresOver Current, Over Temperature, Short Circuit
Number of regulators1
Output configurationPositive

Product details

Fixed 3.3 V rail for noise-sensitive loads

The BD3570YHFP-MTR is a single-output positive LDO regulator from ROHM, delivering a fixed 3.3 V at up to 500 mA. Quiescent current is 50 µA typical, so the regulator's own draw doesn't dominate the budget in always-on or battery-backed sections of the board.

Temperature grade and protection set

The 0.48 V dropout at 200 mA means a 3.5 V input keeps 3.3 V regulation at moderate loads.

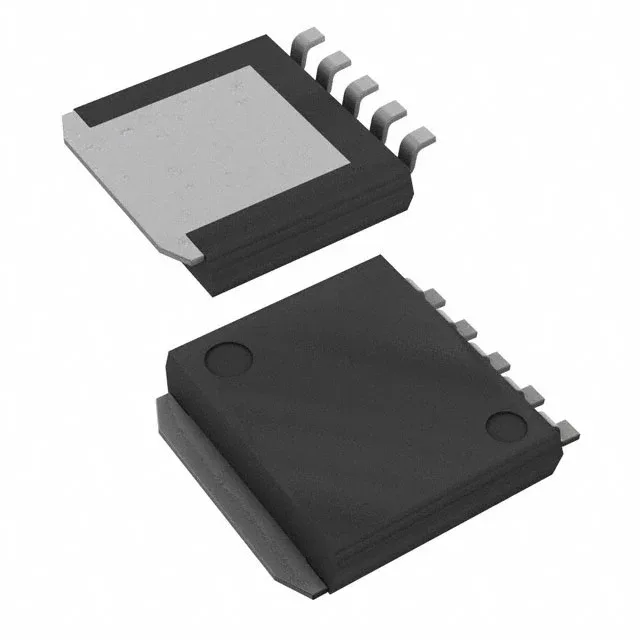

Supplied in a TO-263-6 (D²Pak) with 5 leads plus the exposed tab (HRP-5). The tab is the main thermal path — a copper pour on the PCB's top layer under the tab, with vias to an inner ground plane, pulls heat away from the die. Surface-mount assembly; the tape-and-reel option suits volume pick-and-place.

ROHS3 compliant, so it passes the material declaration for EU and most global markets without an exemption.

Frequently asked questions

Where can I buy BD3570YHFP-MTR and how do I get a price?

Submit a request for quote (RFQ) for current pricing and availability confirmation.

What is BD3570YHFP-MTR's listed PSRR?

The BD3570YHFP-MTR provides 55 dB of power-supply rejection at 120 Hz, which attenuates the rectified mains ripple by a factor of roughly 560.
