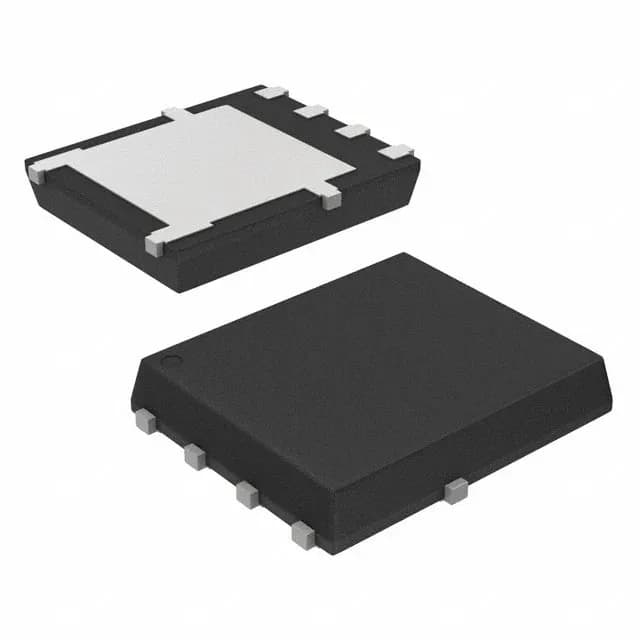

NTMFS002N10MCLT1G
onsemi
Tape & Reel (TR) Cut Tape (CT)-55°C ~ 175°C (TJ)N-Channel
Ref. price$3.2100
Lead time on requestGet quote ›
onsemi NTMFS Series
25 variants · onsemi
About the onsemi onsemi NTMFS Series series
The onsemi onsemi NTMFS Series series groups 25 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common FET feature of -, mounting type of Surface Mount and technology of MOSFET (Metal Oxide). Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below. All listed onsemi NTMFS Series part numbers are active and orderable.
Select a variant by
- Case
- 8-PowerTDFN · 8-PowerTDFN, 5 Leads
- Current - continuous drain (Id) @ 25°C
- 7.3A (Ta), 41.9A (Tc) · 16.4A (Ta), 52A (Tc) · 19.5A (Ta), 131A (Tc) · 21.7A (Ta), 78A (Tc) · 22A (Ta), 175A (Tc) · 30A (Ta), 136A (Tc) · 35A (Ta), 170A (Tc) · 40.2A (Ta), 263A (Tc) · 53A (Ta), 362A (Tc) · 78A (Tc) · 126A (Tc)
- Drain to source voltage
- 30 V · 40 V · 80 V · 100 V · 150 V
- Drive voltage (Max rds on, min rds on)
- 4.5V, 10V · 6V, 10V · 8V, 10V · 10V
- FET type
- N-Channel · P-Channel
- Gate charge (Qg) (Max) @ vgs
- 17 nC @ 10 V · 22.2 nC @ 10 V · 30 nC @ 10 V · 37 nC @ 10 V · 45.2 nC @ 10 V · 48 nC @ 10 V · 55 nC @ 10 V · 60 nC @ 10 V · 97 nC @ 10 V · 149 nC @ 10 V · 217 nC @ 4.5 V
- Input capacitance (Ciss) (Max) @ vds
- 1252 pF @ 15 V · 1315 pF @ 75 V · 1972 pF @ 15 V · 2635 pF @ 50 V · 3071 pF @ 15 V · 3780 pF @ 15 V · 4250 pF @ 40 V · 4411 pF @ 50 V · 7200 pF @ 50 V · 9400 pF @ 20 V · 14950 pF @ 15 V
- Operating temperature
- -55°C ~ 150°C (TJ) · -55°C ~ 175°C (TJ) · -55°C~150°C(TJ)
Variant comparison
| Parameter | NTMFS002N10MCLT1G | NTMFS002P03P8ZT1G | NTMFS022N15MC | NTMFS08N004C | NTMFS10N7D2C | NTMFS1D7N03CGT1G |
|---|---|---|---|---|---|---|
| Case | 8-PowerTDFN, 5 Leads | 8-PowerTDFN, 5 Leads | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN, 5 Leads |
| Current - continuous drain (Id) @ 25°C | 22A (Ta), 175A (Tc) | 40.2A (Ta), 263A (Tc) | 7.3A (Ta), 41.9A (Tc) | 126A (Tc) | 78A (Tc) | 35A (Ta), 170A (Tc) |
| Drain to source voltage | 100 V | 30 V | 150 V | 80 V | 100 V | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V | 4.5V, 10V | 8V, 10V | 6V, 10V | 6V, 10V | 10V |
| FET type | N-Channel | P-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Gate charge (Qg) (Max) @ vgs | 97 nC @ 10 V | 217 nC @ 4.5 V | 17 nC @ 10 V | 55 nC @ 10 V | 37 nC @ 10 V | 48 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 7200 pF @ 50 V | 14950 pF @ 15 V | 1315 pF @ 75 V | 4250 pF @ 40 V | 2635 pF @ 50 V | 3780 pF @ 15 V |
| Operating temperature | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
Shared specifications
- FET feature
- -
- Mounting type
- Surface Mount
- Technology
- MOSFET (Metal Oxide)
Request a quote on any onsemi NTMFS Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
