onsemi NCP81296MNTXG — Crystals & Oscillators

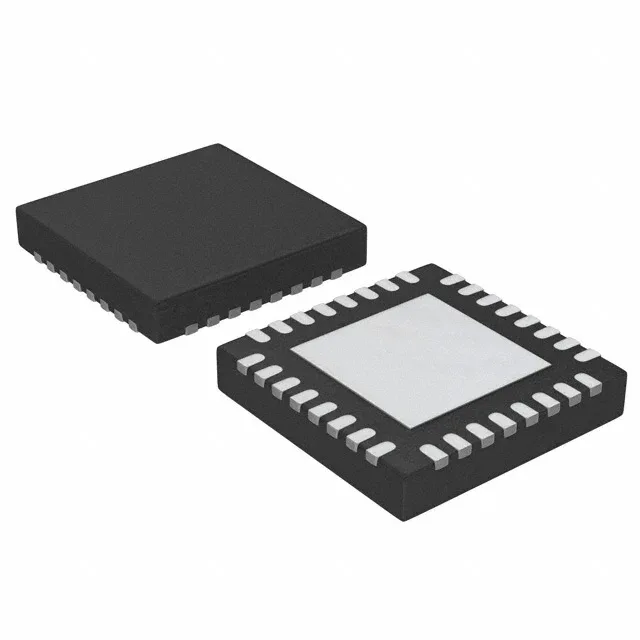

onsemi NCP81296MNTXG Electronic Fuse, 50A, 32-LQFN

MPNNCP81296MNTXG
End of Life

onsemi SENSEFET® Electronic Fuse, NCP81296MNTXG, 50A output, ±6% accuracy, 4.5V-18V input, High-Side sensing, 32-LFQFN Exposed Pad, Tape & Reel.

$6.73Ref. price · indicative, final on quote
Packaging32-LFQFN Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

NCP81296MNTXG Technical Specifications
ParameterValue
SeriesSENSEFET®
Mounting typeSurface Mount
Voltage - input4.5V ~ 18V
Current - output50A
Operating temperature-40°C ~ 125°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Accuracy±6%
FunctionElectronic Fuse
Case32-LFQFN Exposed Pad
Sensing methodHigh-Side

Product details

The NCP81296MNTXG is an onsemi SENSEFET electronic fuse rated for a continuous 50 A output from a 4.5 V to 18 V input rail. That 50 A figure is the current the internal FET can carry in the on-state — it is not a surge or pulse rating, so the BOM needs to budget the full load current below this ceiling with derating for ambient temperature. High-side sensing means the voltage drop across the internal sense element is measured on the input side of the load — the part regulates current by comparing that drop to an internal reference. The ±6 % accuracy tells you the actual current limit will fall within 47 A to 53 A at the setpoint, which matters when sizing the downstream PCB trace and connector for worst-case fault current.

The 0.5 mm pitch QFN footprint is routable on a 4-layer board without microvias. CT is for prototyping or low-volume builds where the full reel quantity is not needed.
