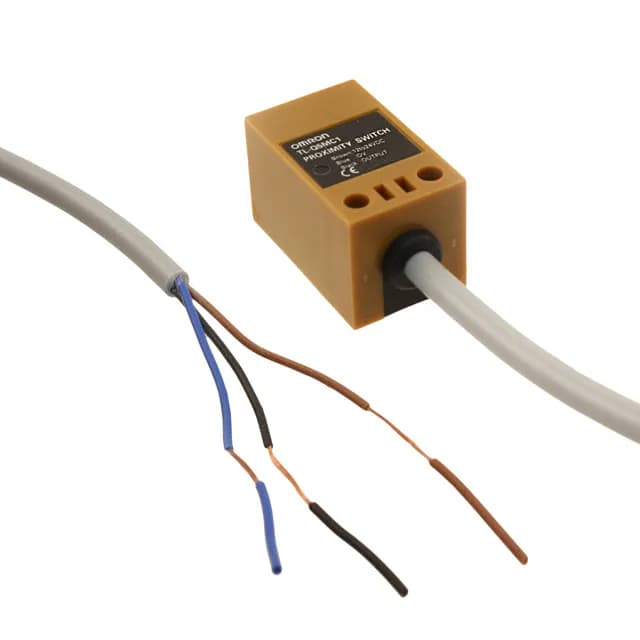

The Omron TL-Q5MC1 is an inductive proximity sensor in a plastic box package with cable leads, rated for a 5 mm sensing distance. It is unshielded, so plan for side-by-side spacing — unshielded sensors need more clearance than shielded types to avoid mutual interference. The NPN-NO, 3-wire output sinks current when a target is present, which mates directly with sinking PLC input cards. The IP67 rating means it handles washdown and dusty factory-floor environments without an extra enclosure.
Output wiring and supply
Supply voltage is 10 V. Output is NPN-NO, 3-wire.
Temperature range and environment
Rated for -25°C to 70°C operating temperature, which covers most indoor industrial environments and unheated warehouses. The plastic enclosure and IP67 sealing make it suitable for areas with coolant mist, washdown cycles, or airborne particulates. The cable leads are factory-molded, so no field-wiring of the connector — just strip and terminate.
