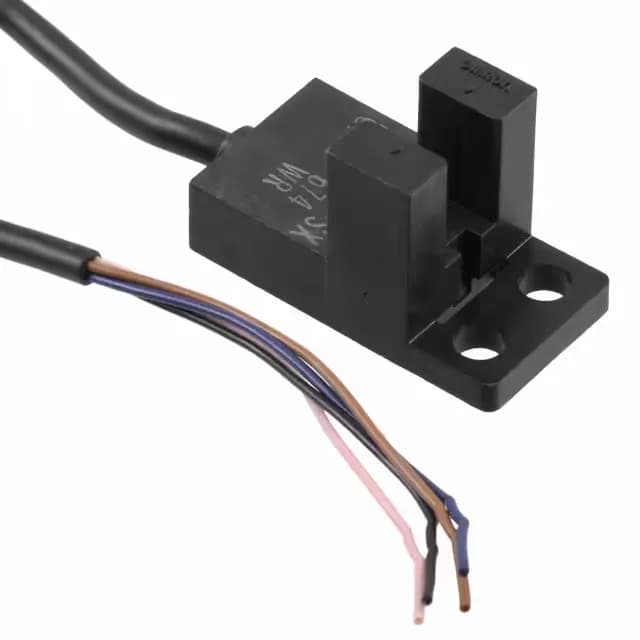

Omron EE-SX674-WR 1M Through-Beam Slot Sensor, NPN Selectable, 5V

MPN EE-SX674-WR 1M
Active Spot Stock · 24-48h Dispatch 100% Original Sealed

Omron EE-SX67 series, EE-SX674-WR 1M through-beam slot photomicrosensor, NPN Dark-ON/Light-ON selectable output, 5 V supply, 0.197 mm sensing distance, chassis mount, -25°C to 55°C operating temperature.

Factory Allocation · Direct Sourcing
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d) Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Wholesale Ref. Price (USD)
Target Price / Quote (2h Fast Turnaround)
Formal B2B Quotation in 2h
Volume pricing applies from 1,000 pcs upward, and is confirmed per order against the quantity and the shipment date. Inquire for Target Qty →
Working on a production BOM or have a target unit price? Submit Target Price
Upload Full BOM List
100% Original Sealed 45x Microscope QC 30-Day Warranty · COC USD T/T & PI · DAP/DDP
[SPEC] Essential Parameters Snapshot Full Specifications (10)
Supply Voltage 5.0

Full Technical Specifications

10 Parameters
EE-SX674-WR 1M specifications
Parameter / AttributeSpecification / Value
SeriesEE-SX67
MountingChassis Mount
Operating temperature high-25°C to 55°C(TA)
Output signalNPN - Dark-ON/Light-ON - Selectable
Package_typeBulk
Sensing_typeThrough-Beam
StatusActive
Supply voltage5.0
Switching current0.035
Sensing distance max0.197
[DESK] Shenzhen Spot Allocation · 2h Response

Need Immediate Spot Stock or Shortage Allocation for EE-SX674-WR 1M?

Factory lead times blocking production? We lock verified brand-new original stock in Shenzhen within 2 hours.

Quote SLA 2 Hours
[01] Emergency Shortage 24-48h Shenzhen Dispatch

Direct access to Shenzhen floor inventory, franchised allocation buffers, and factory bonded stock to resolve line-down shutdowns.

[02] Industrial Packaging Tape & Reel / Tray / Tube

Standard factory-sealed packaging compliant with EIA-481 standards for automated high-speed SMT pick-and-place lines.

[03] WhatsApp QC Proof 45x Microscope QC Photos

High-resolution photos of original reel labels, 2D DataMatrix, and pin coplanarity sent via WhatsApp/Telegram before you release wire payment.

● USD Wire Transfer (SWIFT T/T) · DAP Express / DDP Delivery
WhatsApp Inquiry Request Spot Quote

Technical Details & Description

Omron EE-SX674-WR 1M — slot sensor with selectable output logic

The Omron EE-SX674-WR 1M is a through-beam slot-type photomicrosensor from the EE-SX67 series. It detects an object passing through a 0.197 mm slot by breaking an infrared beam. The NPN output is selectable between Dark-ON and Light-ON via a wiring choice, giving the integrator flexibility to match PLC input polarity without adding an inverter gate.

Temperature range — indoor use only

Rated for -25°C to 55°C ambient. That covers most factory-floor and office-equipment environments, but it won't survive an unheated warehouse winter or a hot attic in summer. The EE-SPX613 sibling shares a similar 55°C ceiling but starts at -10°C, so the EE-SX674-WR 1M has a slight edge on the cold side. Neither is rated for outdoor or condensing environments.

Frequently asked questions

What is the output type of EE-SX674-WR 1M?

NPN open collector with Dark-ON/Light-ON selectable logic. You choose the output state by wiring the load to the normally-open or normally-closed terminal.

Is EE-SX674-WR 1M compatible with 5V logic?

Yes, it runs on a 5 V supply and the NPN output switches to ground, so it interfaces directly with 5 V PLC inputs or 5 V microcontroller GPIO through a pull-up resistor.

What is the operating temperature range of EE-SX674-WR 1M?

-25°C to 55°C ambient. Keep it inside a climate-controlled enclosure; it is not rated for outdoor or condensing environments.

What is the equivalent of EE-SX674-WR 1M?

The EE-SPX613 is a close functional peer with the same through-beam sensing and NPN selectable output, but its slot is 0.236 mm and its temperature range starts at -10°C. The EE-SPX305-W2A is a fixed Dark-ON alternative with a 0.197 mm slot but no output selection.
