Omron EE-SX974-C1 — Interface & Transceivers
Omron

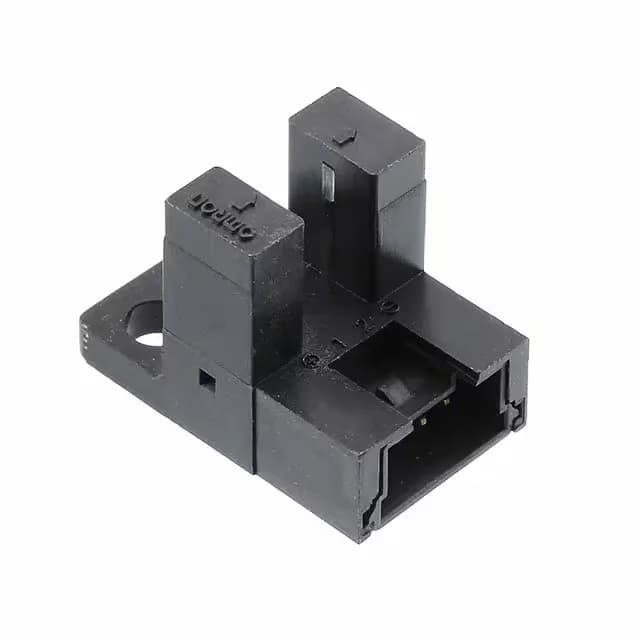

Omron EE-SX974-C1 Through-Beam Slot Sensor, 0.02 mm, 4 ms

MPNEE-SX974-C1
Active

Omron EE-SX974-C1 through-beam slot sensor, 0.02 mm sensing distance, 4 ms response, 30 V supply, 50 mA switching current, chassis mount with M3 screw, -25°C to 85°C, Bulk.

$30.54Ref. price · indicative, final on quote
EE-SX974-C1 datasheet
StockOut of Stock
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

EE-SX974-C1 Technical Specifications
ParameterValue
Mounting_typeChassis Mount, M3 Screw
Operating temperature high-25°C to 85°C
Package_typeBulk
Sensing_typeThrough-Beam
Product_statusActive
Response_time_ms4.0
Supply_voltage_v30.0
Switching_current_a0.05
Sensing_distance_max_mm0.02

Product details

Slot sensor for tight-gap edge and flag detection

The Omron EE-SX974-C1 is a through-beam slot sensor in a chassis-mount package with M3 screw fixing, designed for detecting the presence or absence of an object passing through a 0.02 mm gap.

Temperature range — -25°C to 85°C

The operating temperature range of -25°C to 85°C covers most indoor industrial environments and unheated storage areas. It is not rated for extended outdoor exposure or condensing humidity — if the machine sits in a washdown zone, consider an IP67-rated alternative like the E3T-FT11 series instead.

Frequently asked questions

What is the sensing distance of EE-SX974-C1?

The sensing distance is 0.02 mm — a very narrow through-beam gap for detecting thin flags or vanes.
