Omron EE-SX954-R 1M — Interface & Transceivers

Omron EE-SX954-R 1M Amplified Through-Beam Sensor, NPN Selectable, 0.197 mm Slot

MPNEE-SX954-R 1M
Active

Omron EE-SX95 series amplified through-beam photomicrosensor, order code EE-SX954-R 1M. NPN Dark-ON/Light-ON selectable output, 24 V supply, 0.197 mm sensing slot, chassis mount, operating -25°C to 55°C.

$24.82Ref. price · indicative, final on quote
Omron EE-SX954-R 1M datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

EE-SX954-R 1M specifications
ParameterValue
SeriesEE-SX95
MountingChassis Mount
Operating temperature high-25°C to 55°C
Output signalNPN - Dark-ON/Light-ON - Selectable
Package_typeBulk
Product typeAmplified
Sensing_typeThrough-Beam
StatusActive
Supply voltage24.0
Switching current0.05
Sensing distance max0.197

Product details

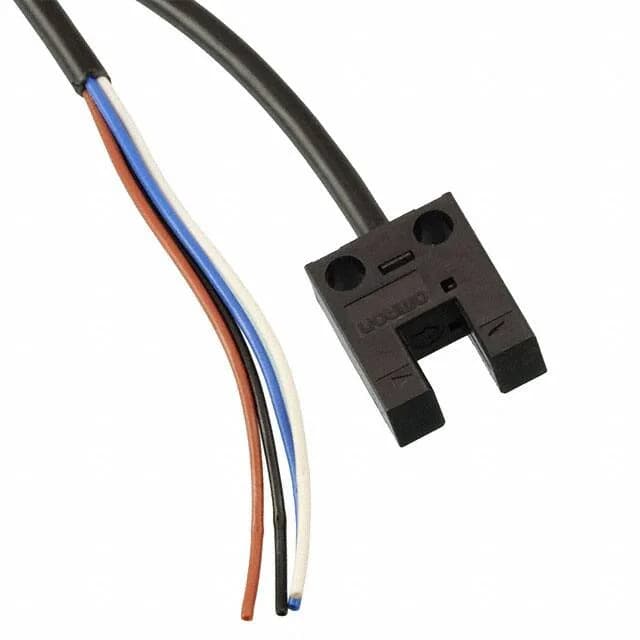

Omron EE-SX954-R 1M — amplified slot sensor for tight-registration sensing

The Omron EE-SX954-R 1M is an amplified through-beam photomicrosensor from the EE-SX95 series, with a 0.197 mm slot. It outputs an NPN open-collector signal selectable between Dark-ON and Light-ON. Supply voltage is 24 V. Rated for chassis-mount installation and operating from -25°C to 55°C.

The sensing slot is 0.197 mm wide. The flag or encoder wheel passing through must be thinner than that gap. Compare to the EE-SPX613 with a 0.236 mm slot.

That means Omron is still manufacturing it, and there's no last-time-buy deadline to chase. The 1-meter cable version (the 'R 1M' suffix) is the standard robotic-grade variant — the cable jacket handles flexing in cable-track applications better than the basic version.

Frequently asked questions

What is the output type of EE-SX954-R 1M?

The output is NPN open-collector, selectable between Dark-ON and Light-ON operation. You choose the logic polarity to match your PLC input card or counter module.

What is the sensing distance of EE-SX954-R 1M?

The sensing slot is 0.197 mm wide. The flag or vane passing through must be thinner than that gap to interrupt the beam reliably.

What is the supply voltage for EE-SX954-R 1M?

The supply voltage is 24 V nominal, which matches standard industrial control voltage. No separate 5 V or 12 V rail is needed.

What is the difference between EE-SX954 and EE-SX954-R 1M?

The 'R 1M' suffix indicates a 1-meter cable length with a robotic-grade jacket, designed for flexing applications. The base EE-SX954 typically has a shorter or standard cable. Functionally the sensing performance is identical.
