Omron EE-SX674P — Interface & Transceivers
Omron

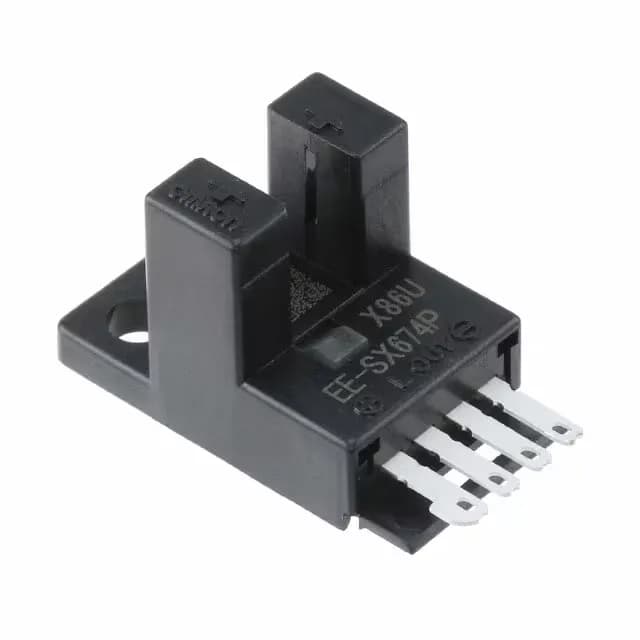

Omron EE-SX674P Through-Beam Slot Sensor, PNP, 5 V, 5 mm, Active

MPNEE-SX674P
Active

Omron EE-SX674P, Through-Beam Slot Sensor, PNP Open Collector, 5 V Supply, 5 mm Slot Width, 1 ms Response, Chassis Mount, Bulk.

$30.54Ref. price · indicative, final on quote
EE-SX674P datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

EE-SX674P Technical Specifications
ParameterValue
Mounting_typeChassis Mount
Operating temperature high-25°C to 55°C(TA)
Output_typePNP - Open Collector
Package_typeBulk
Sensing_typeThrough-Beam
Product_statusActive
Response_time_ms1.0
Supply_voltage_v5.0
Switching_current_a0.012
Sensing_distance_max_mm0.197

Product details

The Omron EE-SX674P is a through-beam slot-type photomicrosensor with a PNP open-collector output. It operates on a 5 V supply and switches up to 12 mA. The 5 mm slot width accepts a flag or vane for position sensing in assembly lines, packaging machines, and conveyor systems. The 1 ms response time handles moderate-speed edge counting but limits use in high-speed encoder applications.

Lifecycle and sourcing

The EE-SX674P is listed as Active in production. No end-of-life notice or successor part is on record.

Frequently asked questions

Is EE-SX674P obsolete or still active?

The EE-SX674P is listed as Active in production. No discontinuation notice has been issued.

What is the difference between EE-SX674 and EE-SX674P?

The base MPN EE-SX674 is the unpopulated sensor module; the EE-SX674P includes the PNP open-collector output stage. The sensing slot and mechanical dimensions are identical.

Can I replace EE-SX674P with an NPN output sensor?

Yes, if your PLC input card accepts sinking (NPN) signals. The peer EE-SPX613 uses an NPN output with selectable Dark-ON/Light-ON logic, but verify the slot width (6 mm vs 5 mm) and mounting hole pattern before substitution.

What is the datasheet for EE-SX674P?

The datasheet covers the EE-SX674 series, including the PNP variant. It details the slot dimensions, wiring diagram, and output timing. Request a copy with your RFQ.
