Omron E2S-W14 1M — Interface & Transceivers
Omron

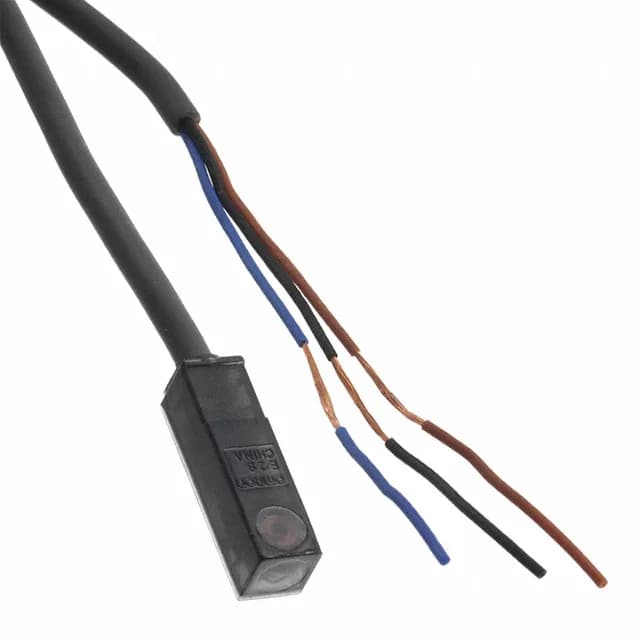

Omron E2S-W14 1M Inductive Prox Sensor, NPN NC, 1.6 mm, IP67

MPNE2S-W14 1M
Active

Omron E2S Series, E2S-W14 1M, Inductive Proximity Sensor, NPN-NC 3-Wire, 1.6 mm sensing distance, 10 V supply, IP67, Plastic housing, Cable Leads, Unshielded, -25°C to 70°C.

$55.25Ref. price · indicative, final on quote
E2S-W14 1M datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

E2S-W14 1M Technical Specifications
ParameterValue
SeriesE2S
Enclosure_materialPlastic
Terminal_typeCable Leads
Operating temperature high-25°C to 70°C
Ip_ratingIP67
Is_shieldedUnshielded
Sensor_typeInductive
Frequency_hz1000.0
Package_typeBulk
Has_indicatorLED
Output_signalNPN-NC, 3-Wire
Product_statusActive
Supply_voltage_v10.0
Sensing_distance_max_mm0.063

Product details

Omron E2S-W14 1M — inductive proximity sensor, 1.6 mm, NPN NC

The Omron E2S-W14 1M is a compact inductive proximity sensor from the E2S series, designed for non-contact detection of ferrous metal targets. It offers a 1.6 mm sensing distance, operates on a 10 V supply, and provides an NPN normally-closed (NC) output via a 3-wire cable. The plastic barrel housing carries an IP67 rating, making it suitable for washdown, dusty, or damp industrial environments such as packaging lines, conveyor systems, and machine tooling. An integral LED indicator provides local target presence confirmation.

NPN NC output — wiring and PLC compatibility

The NPN normally-closed output sinks current when no target is present. The 3-wire cable carries brown (V+), blue (GND), and black (output).

Active lifecycle — no PCN watch needed

Frequently asked questions

How to wire E2S-W14 1M?

The E2S-W14 1M is a 3-wire NPN NC sensor with a 1 m cable. Brown connects to 10 V DC, blue to GND, and black is the normally-closed output that sinks to ground when no target is present.

Is E2S-W14 1M compatible with 24V PLC inputs?

The sensor is rated for a 10 V supply, not 24 V. For use with a 24 V PLC input, a dropping resistor or a dedicated 10 V rail is required. The NPN NC output is compatible with sourcing (PNP) input modules.

Can E2S-W14 1M replace E2S-W14 2M?

The E2S-W14 1M and E2S-W14 2M differ only in cable length — 1 m vs 2 m. The sensing distance, output type, and electrical ratings are identical, so the 1 m version is a drop-in replacement for the 2 m version if cable reach is acceptable.
