Omron E2B-S08KS02-WP-C1 2M — Interface & Transceivers
Omron

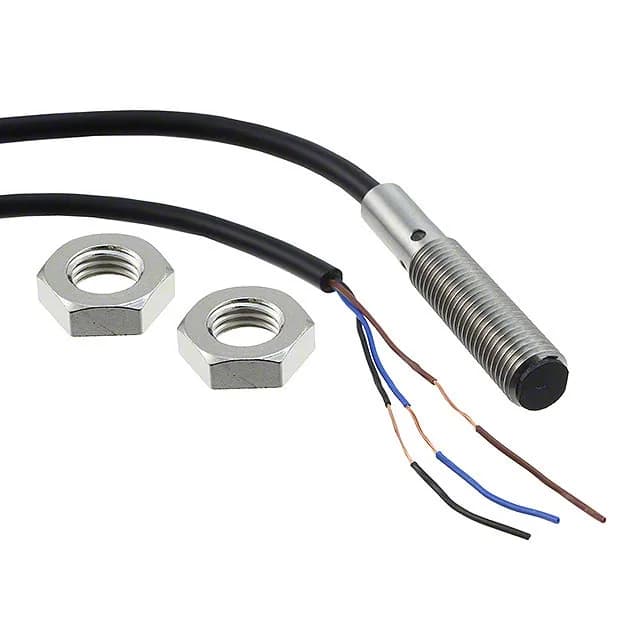

Omron E2B-S08KS02-WP-C1 2M Inductive Sensor, 2 mm, Shielded

MPNE2B-S08KS02-WP-C1 2M
Active

Omron E2B series, E2B-S08KS02-WP-C1 2M inductive proximity sensor, shielded, 2 mm sensing distance, NPN-NO 3-wire output, 10 V supply, IP67, stainless steel, cable leads, -25°C to 70°C.

$28.03Ref. price · indicative, final on quote
E2B-S08KS02-WP-C1 2M datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

E2B-S08KS02-WP-C1 2M Technical Specifications
ParameterValue
SeriesE2B
Enclosure_materialStainless Steel
Terminal_typeCable Leads
Operating temperature high-25°C to 70°C
Ip_ratingIP67
Is_shieldedShielded
Sensor_typeInductive
Frequency_hz1500.0
Package_typeBulk
Has_indicatorLED
Output_signalNPN-NO, 3-Wire
Product_statusActive
Supply_voltage_v10.0
Sensing_distance_max_mm0.079

Product details

What this sensor is and where it fits

The Omron E2B-S08KS02-WP-C1 2M is an inductive proximity sensor from the E2B series. It is shielded (flush-mountable) and has a 2 mm sensing distance (0.079 in).

2 mm sensing range — what it means for mounting

The 2 mm nominal sensing distance is the maximum rated range for a standard steel target. Because the sensor is shielded, you can flush-mount it in metal without derating the sensing distance — a common requirement when retrofitting into existing tapped holes or brackets. For non-ferrous metals (aluminum, brass), expect the effective range to drop to roughly half the steel value. The switching frequency of 1500 Hz keeps up with moderate-speed counting or position feedback on indexing tables.

Output and wiring — NPN-NO, 3-wire

This sensor outputs an NPN normally-open signal on a 3-wire cable. The output transistor sinks current to ground when a target is present.

Frequently asked questions

What is the sensing range of the Omron E2B-S08KS02-WP-C1 2M?

The sensing distance is 2 mm (0.079 in) for a standard steel target. Because the sensor is shielded, flush mounting in metal does not reduce this range.

Is the E2B-S08KS02-WP-C1 2M shielded or unshielded?

It is shielded, which means it can be mounted flush in metal without false triggering from the surrounding material.

What is the operating voltage for E2B-S08KS02-WP-C1 2M?

The supply voltage is 10 V DC. This is within the common 10–30 V DC range for industrial sensors, but confirm your control voltage matches.

What is a direct replacement for E2B-S08KS02-WP-C1 2M?

The Omron E2A-S08LS02-WP-C1 2M is a functional peer with the same 2 mm range, shielded construction, NPN-NO output, and IP67 rating, but it operates from -40°C to 70°C. For a PNP output, the E2A-S08KS02-WP- 2M is an alternative.

Is the E2B-S08KS02-WP-C1 2M compatible with a 3-wire NPN PLC input?

Yes, the sensor outputs an NPN normally-open signal on a 3-wire cable. It pulls the input low when a target is detected, so it pairs with sourcing (PNP) PLC input modules or requires a pull-up resistor for sinking inputs.
