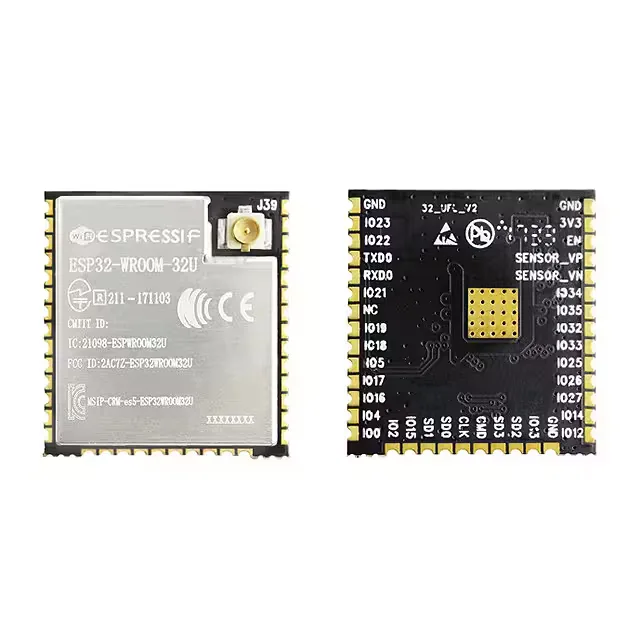

Espressif Systems ESP32-WROOM-32U-N4
MPNESP32-WROOM-32U-N4
Active
$4.0800Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ESP32 |
| Antenna type | Antenna Not Included, U.FL |
| Mounting | Surface Mount |
| RF family | Bluetooth, WiFi |
| Voltage | 3V ~ 3.6V |
| Power - output | 20.5dBm |
| Frequency | 2.4GHz ~ 2.5GHz |
| Protocol | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 |
| Interface | GPIO, I²C, I²S, PWM, SDIO, SPI, UART |
| Operating temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Data rate | 150Mbps |
| Modulation | CCK, DSSS, OFDM |
| Memory size | 4MB Flash, 448kB ROM, 536kB SRAM |
| Sensitivity | -98dBm |
| Case | 38-SMD Module |
| Utilized IC (Part) | ESP32-D0WD |
