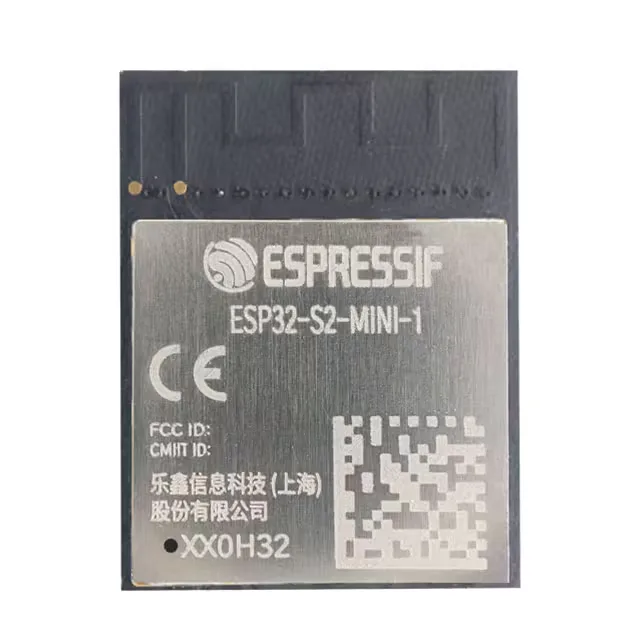

The ESP32-S2-MINI-1-N4 from Espressif Systems is a compact WiFi module built around the ESP32-S2 SoC, supporting 802.11 b/g/n protocols at data rates up to 150 Mbps across the 2.412 GHz to 2.484 GHz band. It integrates a PCB trace antenna, eliminating the need for an external antenna in space-constrained designs, and delivers a transmit output power of 19.5 dBm with a receive sensitivity of -97 dBm.
Memory, sensitivity, and power budget for BOM fit
On-chip memory comprises 128 kB ROM and 320 kB SRAM, sufficient for lightweight TCP/IP stacks and application code without external RAM in many IoT endpoints. The -97 dBm receive sensitivity at the 1 Mbps data rate gives the module usable range in indoor environments where path loss through walls and floors is a factor; the 19.5 dBm TX power pushes the link budget past 30 dBm, enough for a 50-100 meter line-of-sight link in most residential or light-commercial deployments.
Package, supply, and temperature grade for board integration
Supply voltage is 3 V to 3.6 V, compatible with standard 3.3 V rails; the module's internal LDOs regulate down to the core voltage, so a clean 3.3 V supply with adequate decoupling at the VDD pins is the primary board-level requirement.
Serial interfaces and GPIO routing flexibility
The ESP32-S2 provides a rich set of serial interfaces accessible through the module's pins: ADC, GPIO, I²C, I²S, SPI, PWM, UART, and USB — allowing connection to sensors, displays, audio codecs, and external memory without an external bridge chip. The USB interface supports direct programming and serial debug via a USB-to-UART bridge on the host side, eliminating the need for a separate JTAG probe during development.
