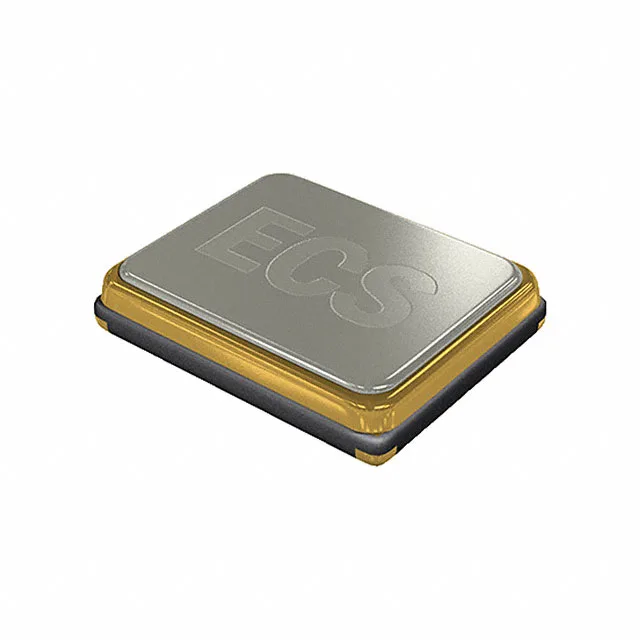

ECS Inc. ECS-270-20-33-TR — Crystals & Oscillators

ECS-270-20-33-TR 27 MHz Crystal, 20 pF, ECX-32

MPNECS-270-20-33-TR
Active

ECS Inc. ECX-32 MHz crystal, 27 MHz, 20 pF load, ±50 ppm tolerance, 40 Ω ESR, 3.20 mm × 2.50 mm 4-SMD no-lead, 0.80 mm profile, -20°C~70°C, fundamental mode, tape & reel.

$1.0800Ref. price · indicative, final on quote
ECS Inc. ECS-270-20-33-TR datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ECS-270-20-33-TR specifications
ParameterValue
TypeMHz Crystal
SeriesECX-32
MountingSurface Mount
ESR40 Ohms
Frequency27 MHz
Frequency stability±50ppm
Frequency tolerance±50ppm
Operating temperature-20°C~70°C
Size (Dimension)0.126\" L x 0.098\" W (3.20mm x 2.50mm)
Height - seated0.031\" (0.80mm)
PackageTape & Reel (TR); Cut Tape (CT)
Operating modeFundamental
Case4-SMD, No Lead
Load capacitance20pF

Product details

The ECS-270-20-33-TR: Load capacitance is specified at 20 pF; the 40 Ω ESR is the parameter that most directly governs whether this crystal plays well with your MCU's oscillator circuit — a higher ESR absorbs more drive power and can pull the startup margin on some controllers.

ECX-32 package — T&R and board-fit

Supplied in tape-and-reel (TR) with cut-tape (CT) option, the 4-SMD no-lead package reflow-solders to a standard 3.2 × 2.5 mm land pattern — confirm your layout's pad opening and solder mask clearance match the recommended footprint to avoid tombstoning on the narrow body.

Frequently asked questions

What series does the ECS-270-20-33-TR belong to, and what is its listed type?

It is listed as an ECX-32 series MHz crystal, operating in fundamental mode, with a 20 pF load capacitance and ±50 ppm tolerance.
