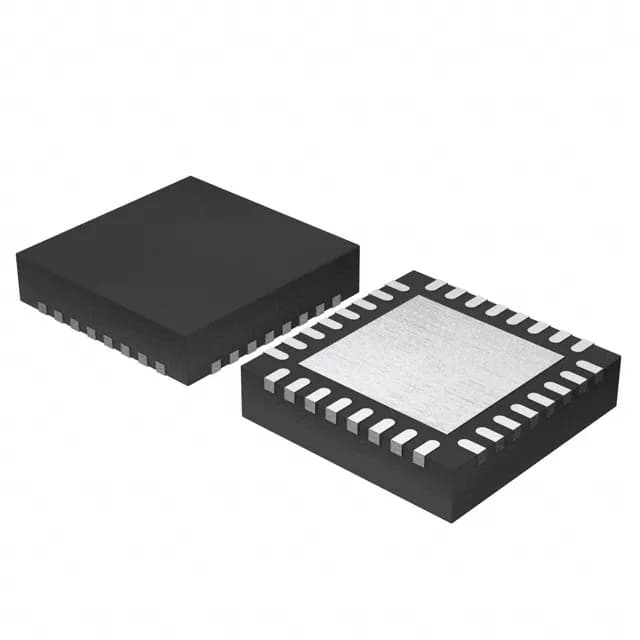

Winbond Electronics ISD2360YYI
MPN ISD2360YYI
End of Life
Spot Stock · 24-48h Dispatch
100% Original Sealed
IC VOICE REC/PLAY 64SEC 32QFN
In Stock: 6,835 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$2.89 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$2.89
10+ pcs
$2.60
30+ pcs
$2.37
100+ pcs
$2.14
500+ pcs
$1.99
1,000+ pcs
$1.88
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (14)
Package / Case 32-WFQFN Exposed Pad
Supply Voltage 2.4 V ~ 5.5 V
Full Technical Specifications
14 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | ChipCorder® |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Supply voltage | 2.4 V ~ 5.5 V |
| Sampling frequency | 4 ~ 32kHz |
| Interface | SPI |
| Output signal | PWM Speaker Output, SPI |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tray |
| Duration | 64 Sec |
| Features | Volume Control |
| Messaging | Single |
| Input signal | SPI |
| Case | 32-WFQFN Exposed Pad |
