Texas Instruments TAS5 Memory Series

6 variants · Texas InstrumentsAll Memory (DRAM / SRAM / Flash / EEPROM) →

About the Texas Instruments TAS5 Memory Series

The Texas Instruments TAS5 Memory Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount and type of Class D. Variants differ by case, features and max output power x channels @ load, so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments TAS5 Memory Series part numbers are active and orderable.

Select a variant by

Case: 44-TSSOP (0.244\", 6.20mm Width) Exposed Pad · 48-PowerTQFP · 48-TFSOP (0.240\", 6.10mm Width) Exposed Pad · 64-TQFP Exposed Pad
Features: Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown · Depop, Digital Inputs, I²C, I²S, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control · Depop, Digital Inputs, I²C, I²S, Mute, Short-Circuit and Thermal Protection, Volume Control · Digital PWM Inputs, Short-Circuit and Thermal Protection, Shutdown · Short-Circuit Protection
Max output power x channels @ load: 21W x 2 @ 8Ohm · 56W x 1 @ 4Ohm; 28W x 2 @ 4Ohm · 69.6W x 1 @ 4Ohm, 37.2W x 2 @ 8Ohm · 200W x 1 @ 2Ohm; 100W x 2 @ 4Ohm · 250W x 1 @ 2Ohm; 165W x 2 @ 3Ohm · 300W x 1 @ 2Ohm; 200W x 2 @ 3Ohm
Operating temperature: -25°C ~ 85°C (TA) · 0°C ~ 70°C (TA) · 0°C ~ 85°C (TA)
Output type: 1-Channel (Mono) or 2-Channel (Stereo) · 2-Channel (Stereo, 2.1) or 4-Channel (Quad)
Package: Tape & Reel (TR); Cut Tape (CT) · Tray · Tube
Voltage: 2.9V ~ 3.63V · 3V ~ 3.6V · 8V ~ 26V · 10.8V ~ 13.2V · 16V ~ 34.1V · 18V ~ 38V

Shared specifications

Mounting: Surface Mount
Type: Class D

Variant comparison

Parameter	TAS5613APHDR	TAS5731MPHPR	TAS5711PHPR	TAS5342LADDVR	TAS5611APHD	TAS5756MDCA

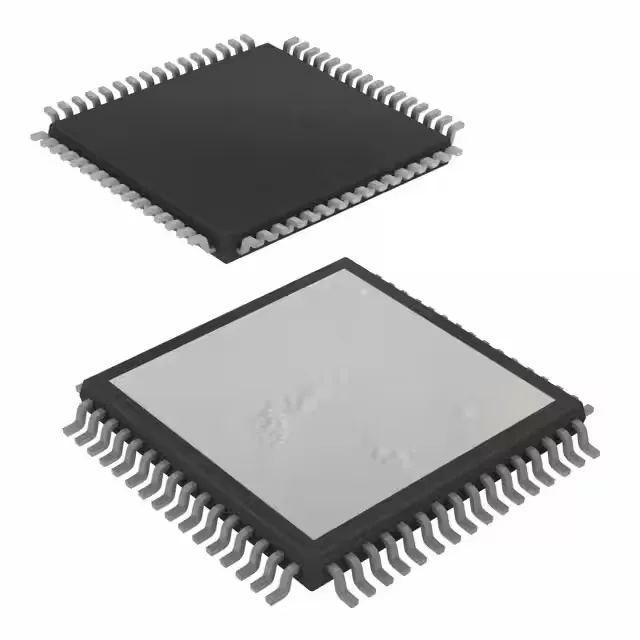

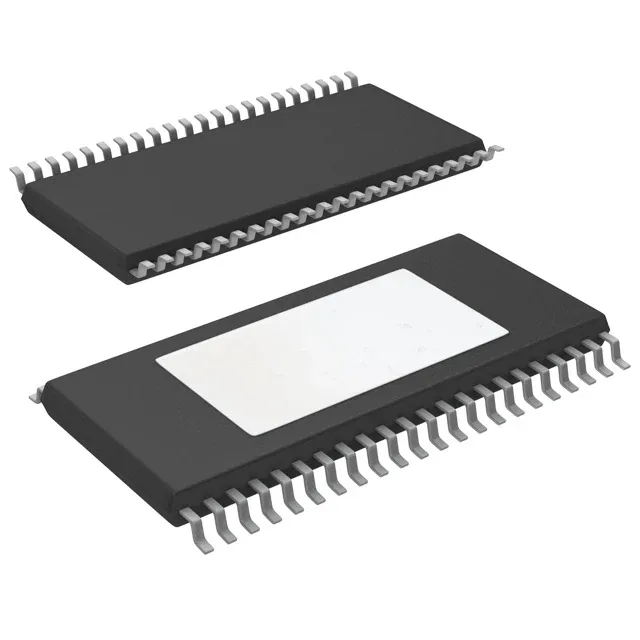

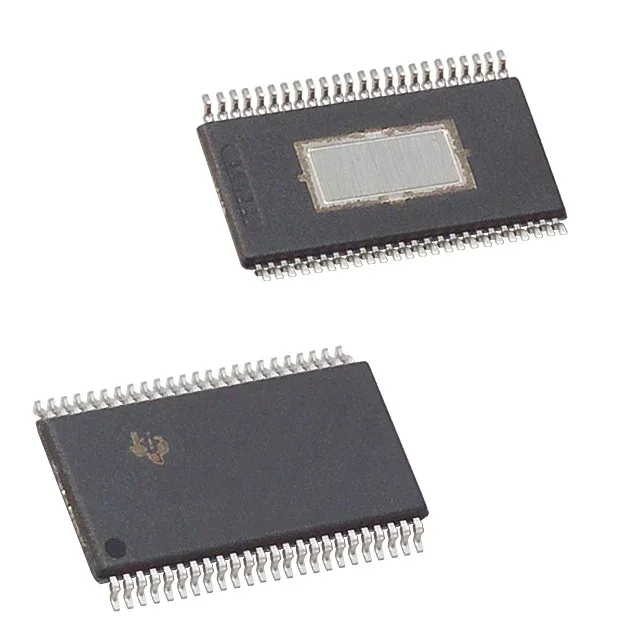

Case	64-TQFP Exposed Pad	48-PowerTQFP	48-PowerTQFP	44-TSSOP (0.244\", 6.20mm Width) Exposed Pad	64-TQFP Exposed Pad	48-TFSOP (0.240\", 6.10mm Width) Exposed Pad
Features	Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown	Depop, Digital Inputs, I²C, I²S, Mute, Short-Circuit and Thermal Protection, Volume Control	Depop, Digital Inputs, I²C, I²S, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control	Digital PWM Inputs, Short-Circuit and Thermal Protection, Shutdown	Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown	Short-Circuit Protection
Max output power x channels @ load	300W x 1 @ 2Ohm; 200W x 2 @ 3Ohm	69.6W x 1 @ 4Ohm, 37.2W x 2 @ 8Ohm	21W x 2 @ 8Ohm	200W x 1 @ 2Ohm; 100W x 2 @ 4Ohm	250W x 1 @ 2Ohm; 165W x 2 @ 3Ohm	56W x 1 @ 4Ohm; 28W x 2 @ 4Ohm
Operating temperature	0°C ~ 70°C (TA)	0°C ~ 85°C (TA)	0°C ~ 85°C (TA)	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	-25°C ~ 85°C (TA)
Output type	1-Channel (Mono) or 2-Channel (Stereo)	1-Channel (Mono) or 2-Channel (Stereo)	2-Channel (Stereo, 2.1) or 4-Channel (Quad)	1-Channel (Mono) or 2-Channel (Stereo)	1-Channel (Mono) or 2-Channel (Stereo)	1-Channel (Mono) or 2-Channel (Stereo)
Package	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tray	Tube
Voltage	18V ~ 38V	3V ~ 3.6V	8V ~ 26V	10.8V ~ 13.2V	16V ~ 34.1V	2.9V ~ 3.63V

Request a quote on any Texas Instruments TAS5 Memory Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
