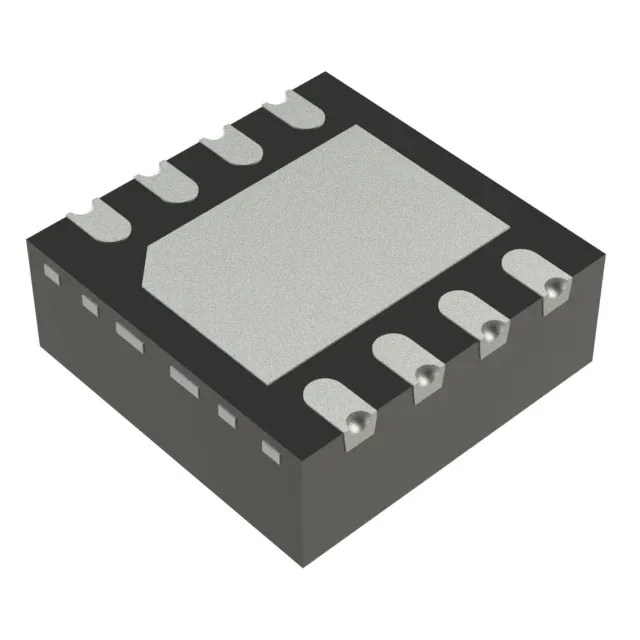

OPA859QDSGRQ1
Texas Instruments
Tape & Reel (TR); Cut Tape (CT)-40°C ~ 125°C (TA)Differential
Ref. price$5.53
Lead time on requestGet quote
Texas Instruments OPA8 Memory Series
9 variants · Texas Instruments
About the Texas Instruments OPA8 Memory Series
The Texas Instruments OPA8 Memory Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount and number of circuits of 1. Variants differ by amplifier type, case and current - supply, so you can match the exact amplifier type your application requires using the selection guide below.
Select a variant by
- Amplifier type
- General Purpose · J-FET · Transconductance · Voltage Feedback
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-WFDFN Exposed Pad · 16-VFQFN Exposed Pad · SOT-23-6
- Current - supply
- 5.4mA · 5.6mA · 20.2mA · 20.5mA · 21mA · 23.4mA · 26.5mA · 960µA
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 125°C · -40°C ~ 125°C (TA)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Slew rate
- 220V/µs · 240V/µs · 350V/µs · 900V/µs · 1000V/µs · 1150V/µs · 1400V/µs
- Voltage - supply span
- 3.6 V · 5.25 V · 5.4 V · 12 V · 12.6 V · 13 V
- Current - input bias
- 0.5 pA · 1 µA · 1.5 µA · 9 µA · 20 µA · 25 pA
Shared specifications
- Mounting
- Surface Mount
- Number of circuits
- 1
Variant comparison
| Parameter | OPA859QDSGRQ1 | OPA818IDRGT | OPA820ID | OPA859IDSGR | OPA861IDBVT | OPA843ID |
|---|---|---|---|---|---|---|
| Amplifier type | J-FET | J-FET | Voltage Feedback | General Purpose | Transconductance | Voltage Feedback |
| Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) | 8-WFDFN Exposed Pad | SOT-23-6 | 8-SOIC (0.154\", 3.90mm Width) |
| Current - supply | 21mA | 26.5mA | 5.6mA | 20.5mA | 5.4mA | 20.2mA |
| Operating temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube |
| Slew rate | 1150V/µs | 1400V/µs | 240V/µs | 1150V/µs | 900V/µs | 1000V/µs |
| Voltage - supply span | 5.25 V | 13 V | 12 V | 5.25 V | 12.6 V | 12 V |
| Current - input bias | 0.5 pA | 25 pA | 9 µA | — | 1 µA | 20 µA |
Request a quote on any Texas Instruments OPA8 Memory Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
