LM360N
Texas Instruments
Through HoleBulk0°C ~ 70°C
Ref. price$1.94
Lead time on requestGet quote
Texas Instruments LM36 Analog Series
8 variants · Texas Instruments
About the Texas Instruments LM36 Analog Series
The Texas Instruments LM36 Analog Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by case, mounting and operating temperature, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm) · 9-WFBGA, DSBGA · 12-UFBGA, DSBGA · 12-WFBGA, DSBGA · 24-UFBGA, DSBGA
- Mounting
- Surface Mount · Through Hole
- Operating temperature
- -40°C ~ 85°C (TA) · 0°C ~ 70°C
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT)
- Type
- DC DC Regulator · Differential
- Applications
- Backlight · Camera Flash
- Current - output (Channel)
- 1.5A (Flash) · 1.9A (Switch) · 25mA · 30mA
- I/O channels
- 1 · 2 · 3 · 4
Variant comparison

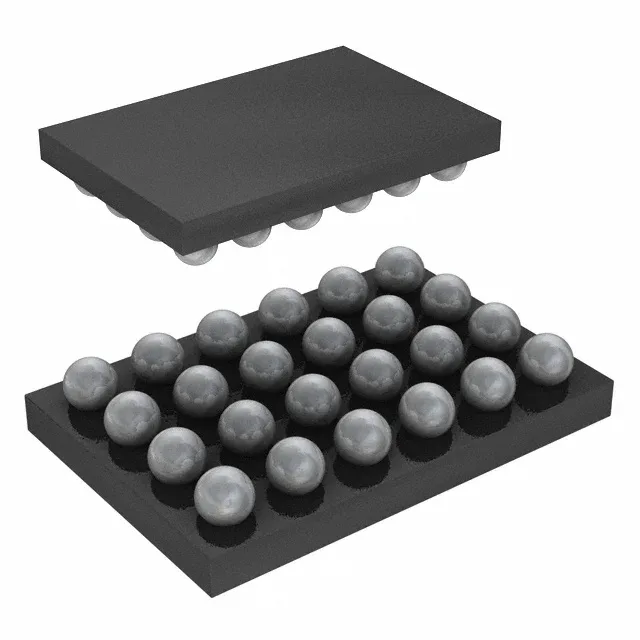

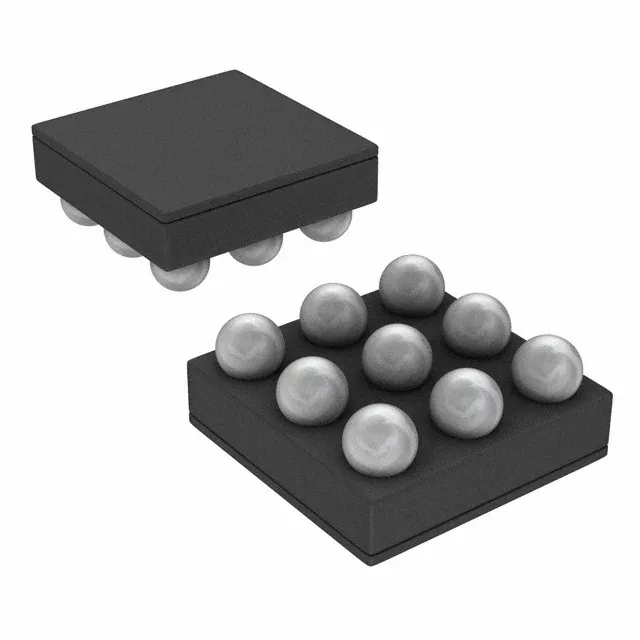

| Parameter | LM360N | LM36274YFFR | LM3642TLX/NOPB | LM3643AYFFR | LM36923HYFFR | LM3697YFQR |
|---|---|---|---|---|---|---|
| Case | 8-DIP (0.300\", 7.62mm) | 24-UFBGA, DSBGA | 9-WFBGA, DSBGA | 12-UFBGA, DSBGA | 12-UFBGA, DSBGA | 12-WFBGA, DSBGA |
| Mounting | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | 0°C ~ 70°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Package | Bulk | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Type | Differential | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Applications | — | Backlight | Camera Flash | Camera Flash | Backlight | Backlight |
| Current - output (Channel) | — | 30mA | 1.5A (Flash) | 1.9A (Switch) | 25mA | 30mA |
| I/O channels | — | 4 | 1 | 2 | 3 | 3 |
Request a quote on any Texas Instruments LM36 Analog Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
