What this part is and where it fits

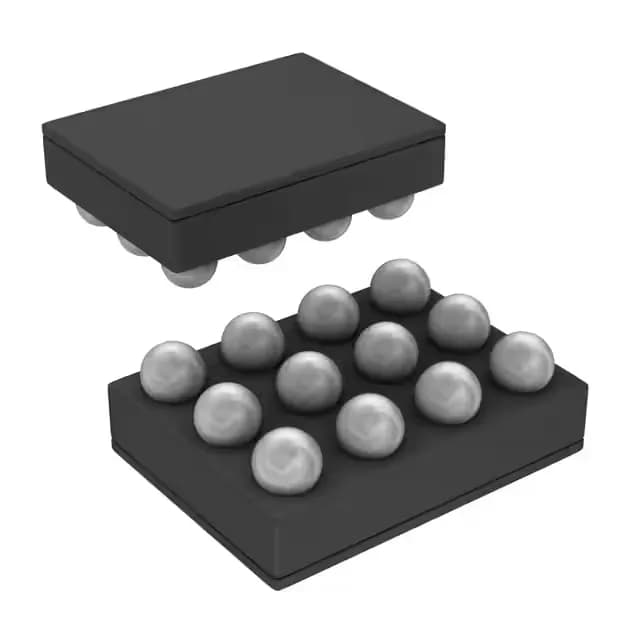

The Texas Instruments LM3697YFQR is a DC-DC regulator LED driver built around a step-up (boost) topology, designed specifically for backlight applications. It integrates three regulated current sinks, each rated for 30 mA, and delivers up to 40 V on the output — enough to drive a multi-LED string in a small-panel backlight. The part switches at either 500 kHz or 1 MHz, letting you trade inductor size against switching losses. It lives in a 12-DSBGA package (1.64 x 1.24 mm), so it is a board-space play: fine for a compact display assembly, but you will want a microscope and a reflow profile to place it reliably.
Key ratings and what they mean for the BOM
The 40 V output ceiling sets the maximum LED string voltage. Three channels at 30 mA each drive three parallel strings.
Switching frequency and inductor selection
You pick 500 kHz or 1 MHz via the RT pin. At 1 MHz the inductor can be smaller; at 500 kHz efficiency edges up.
Package and placement reality
12-DSBGA at 1.64 x 1.24 mm — that is a wafer-level chip-scale package. No leads to probe, no hand-solder option. You need a stencil, a reflow oven, and X-ray inspection to verify the bumps.
Lifecycle and sourcing
The LM3697YFQR is listed as Active and ROHS3 compliant.
