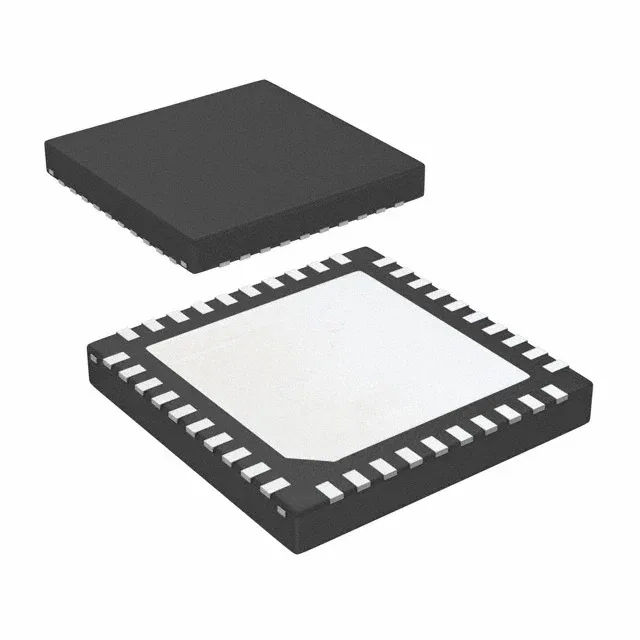

The Texas Instruments DS10CP154ATSQ/NOPB is a 1 x 4:4 crosspoint switch — a single-chip routing matrix that connects any of four inputs to any of four outputs independently. The 40-WQFN package with an exposed pad means the thermal path goes through the pad to the board — the pad is the primary heat sink, not the plastic body.
Package and footprint — what the exposed pad needs
Without those vias, the junction temperature climbs faster than the datasheet thermal resistance suggests. The pad is electrically connected to the substrate — typically ground — so the PCB footprint should match the recommended land pattern in the datasheet.
The 3V to 3.6V single-supply range is a standard 3.3V rail with headroom on both sides. If your board runs a 3.3V rail with ±5% tolerance, this part sits comfortably inside the window — no extra regulator needed. No AEC-Q grade is listed, so it is not qualified for automotive under-hood or chassis domains.
Lifecycle and compliance — no LTB pressure
It is also ROHS3 Compliant, which means the finish is fully lead-free and there is no exemption expiry to track for EU or similar markets.
