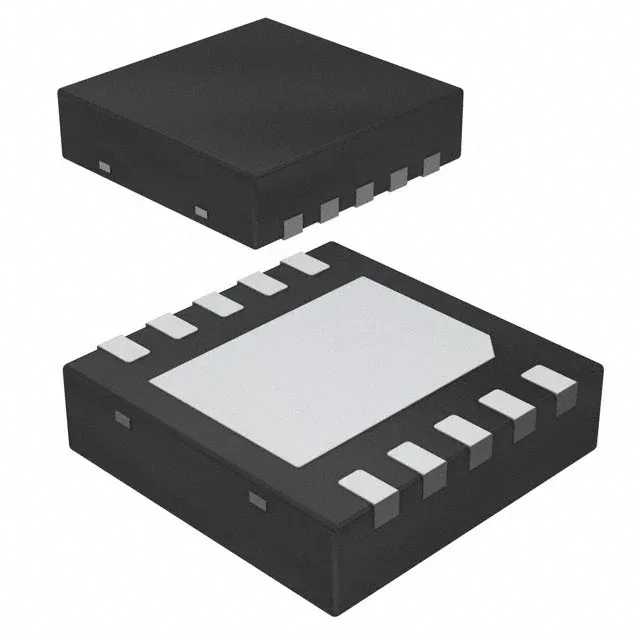

DAC7563SDSCT - Texas Instruments
MPNDAC7563SDSCT
End of Life
IC DAC 12BIT V-OUT 10WSON
$6.98Ref. price · indicative, final on quote
Packaging10-WFDFN Exposed Pad
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Output type | Voltage - Buffered |
| Mounting | Surface Mount |
| Reference type | External, Internal |
| Voltage - supply, analog | 2.7V ~ 5.5V |
| Voltage - supply, digital | 2.7V ~ 5.5V |
| Data interface | SPI, DSP |
| Operating temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Architecture | String DAC |
| INL (DNL) | ±0.3, ±0.05 |
| Settling time | 10µs (Typ) |
| Number of bits | 12 |
| Case | 10-WFDFN Exposed Pad |
| Differential output | No |
| Number of d (A converters) | 2 |
