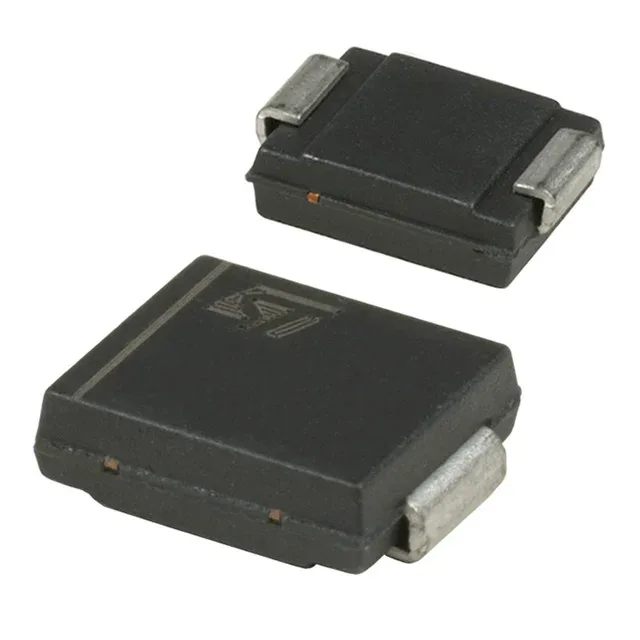

SM15T22AY
STMicroelectronics
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 150°C (TJ)Zener
Ref. price$1.0000
Lead time on requestGet quote
STMicroelectronics SM15T Series
70 variants · STMicroelectronics
About the STMicroelectronics SM15T Series
The STMicroelectronics SM15T Series series groups 70 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common capacitance @ frequency of -, case of DO-214AB, SMC and mounting of Surface Mount. Variants differ by applications, current - peak pulse (10/1000μs) and operating temperature, so you can match the exact applications your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current STMicroelectronics SM15T Series variants and discontinued ones from a single page.
Select a variant by
- Applications
- - · Automotive · General Purpose
- Current - peak pulse (10/1000μs)
- 38A (8/20µs) · 56A (8/20µs) · 368A (8/20µs) · 461A (8/20µs) · 538A (8/20µs)
- Operating temperature
- -55°C~150°C(TJ) · -40°C ~ 150°C (TJ) · -40°C~150°C(TJ)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Voltage - breakdown
- 9.5V · 11.4V · 14.3V · 95V · 143V
- Voltage - clamping (Max) @ ipp
- 18.6V · 21.7V · 27.2V · 178V · 265V
- Voltage - reverse standoff
- 8.55V · 10.2V · 12.8V · 85.5V · 128V
Shared specifications
- Capacitance @ frequency
- -
- Case
- DO-214AB, SMC
- Mounting
- Surface Mount
- Power - peak pulse
- 1500W (1.5kW)
- Power line protection
- No
- Type
- Zener
Variant comparison
| Parameter | SM15T100A | SM15T100CA | SM15T10A | SM15T10AY | SM15T10CA | SM15T10CAY |
|---|---|---|---|---|---|---|
| Applications | General Purpose | General Purpose | General Purpose | Automotive | General Purpose | Automotive |
| Current - peak pulse (10/1000μs) | 56A (8/20µs) | 56A (8/20µs) | 538A (8/20µs) | 538A (8/20µs) | 538A (8/20µs) | 538A (8/20µs) |
| Operating temperature | -55°C~150°C(TJ) | -55°C~150°C(TJ) | -55°C~150°C(TJ) | -40°C~150°C(TJ) | -55°C~150°C(TJ) | -40°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Voltage - breakdown | 95V | 95V | 9.5V | 9.5V | 9.5V | 9.5V |
| Voltage - clamping (Max) @ ipp | 178V | 178V | 18.6V | 18.6V | 18.6V | 18.6V |
| Voltage - reverse standoff | 85.5V | 85.5V | 8.55V | 8.55V | 8.55V | 8.55V |
Request a quote on any STMicroelectronics SM15T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
