Dual-core application processor with integrated real-time subsystem

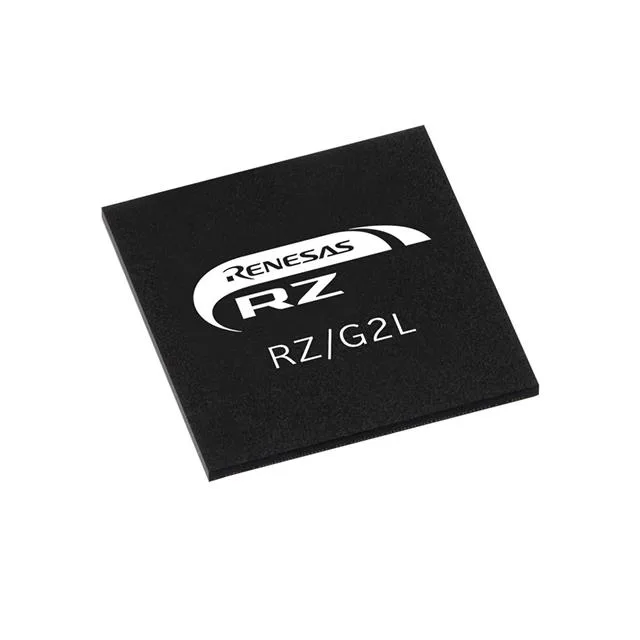

The Renesas R9A07G044L18GBG#AC0 is a dual-core 64-bit MPU from the RZ/G2L series, pairing a 1.2 GHz ARM Cortex-A55 application core with a 200 MHz Cortex-M33 real-time core for mixed-criticality workloads on a single die. It targets industrial HMI, edge gateways, and vision-enabled control where a single chip must run Linux on the A55 while the M33 handles deterministic I/O or safety monitoring.
Memory and storage interface headroom
The integrated memory controller supports DDR3L and DDR4, giving the BOM designer flexibility to choose between lower-cost DDR3L or higher-bandwidth DDR4 depending on the system's throughput requirements. Additional non-volatile storage interfaces include eMMC, SD/SDIO, and SPI — enough bus width to boot from a parallel NAND or a high-speed eMMC without external glue logic.
Industrial networking and display pipeline
Two Gigabit Ethernet ports with 10/100/1000 Mbps support allow the part to serve as a dual-port bridge, aggregator, or redundant industrial node without an external switch IC. The MIPI-DSI display interface and MIPI-CSI camera input, combined with the ARM Mali-G31 GPU, enable a single-chip HMI with camera capture, graphics overlay, and Ethernet uplink.
Security and temperature grade for field deployment
On-chip security accelerators (AES, RSA, SHA-1/224/256, TRNG) support secure boot, encrypted firmware updates, and authenticated communication — essential for a connected industrial device that must resist tampering.
Peripheral integration and supply voltage flexibility
The peripheral set includes CAN bus, dual USB 2.0, I2C, SPI, and UART — enough to connect to legacy fieldbus networks, sensors, and debug consoles without external USB hub or CAN transceiver on the same die, though external PHYs are needed for the physical layer. I/O voltage banks at 1.8V and 3.3V allow direct connection to both low-voltage memory and 3.3V peripheral logic without external level shifters on most signals.
Package and board-level integration note
The 551-LFBGA (21x21 mm) with 0.8 mm ball pitch is a standard BGA footprint — it routes on a 4-layer PCB with via-in-pad if the DDR4 interface runs at speed, but a 6-layer board gives cleaner signal integrity for the GbE and MIPI differential pairs. Supplied in tray format; moisture sensitivity level (MSL) should be verified from the latest Renesas packing spec before the reflow profile is set — a high-MSL part that skips the bake risks popcorning in the 260°C peak reflow.
Lifecycle and compliance status
ROHS3 compliant, with no restricted substances per the latest EU directive — ships globally without exemption paperwork.
No official second-source or pin-compatible cross-reference is recorded from Renesas — the closest functional peer, the R9A07G043U11GBG#BC0, carries a quad-core Cortex-A55 configuration versus the dual-core on this part, so a board spin would be required to swap between them.
