NXP Semiconductors MK10 Series

10 variants · NXP SemiconductorsAll Microcontrollers & Processors (MCU / MPU / DSP) →

About the NXP Semiconductors MK10 Series

The NXP Semiconductors MK10 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common core processor of ARM® Cortex®-M4, core size of 32-Bit Single-Core and operating temperature of -40°C ~ 105°C (TA). Variants differ by case, connectivity and data converters, so you can match the exact case your application requires using the selection guide below.

Select a variant by

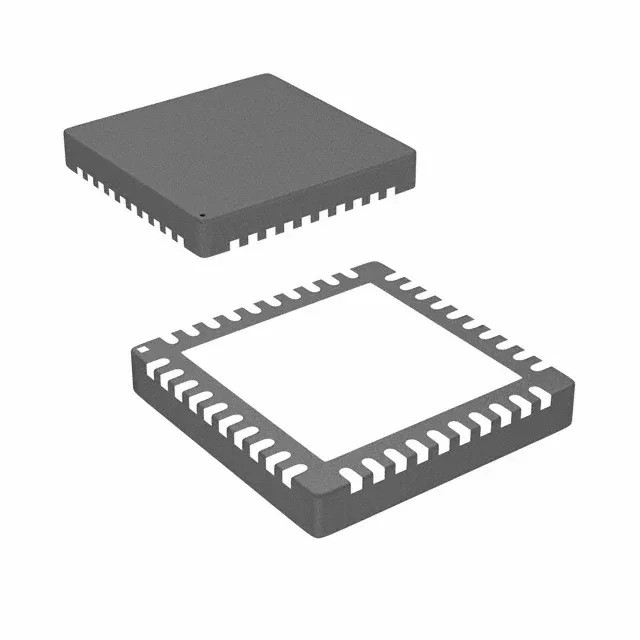

Case: 32-VFQFN Exposed Pad · 48-LQFP
Connectivity: I2C, IrDA, SPI, UART/USART · I²C, IrDA, SPI, UART/USART
Data converters: A/D 10x16b · A/D 16x16b
Mounting: Surface Mount · Surface Mount, Wettable Flank
Number of i (O): 24 · 33
Peripherals: DMA, I2S, LVD, POR, PWM, WDT · DMA, I²S, LVD, POR, PWM, WDT
Program memory size: 32KB (32K x 8) · 128KB (128K x 8)
RAM size: 8K x 8 · 16K x 8

Shared specifications

Core processor: ARM® Cortex®-M4
Core size: 32-Bit Single-Core
Operating temperature: -40°C ~ 105°C (TA)
Oscillator type: Internal
Package: Tray
Program memory type: FLASH
Speed: 50MHz
Voltage - supply (Vcc (Vdd)): 1.71V ~ 3.6V

Variant comparison

Parameter	MK10DN128VFM5	MK10DN32VLF5
Case	32-VFQFN Exposed Pad	48-LQFP
Connectivity	I²C, IrDA, SPI, UART/USART	I2C, IrDA, SPI, UART/USART
Data converters	A/D 10x16b	A/D 16x16b
Mounting	Surface Mount, Wettable Flank	Surface Mount
Number of i (O)	24	33
Peripherals	DMA, I²S, LVD, POR, PWM, WDT	DMA, I2S, LVD, POR, PWM, WDT
Program memory size	128KB (128K x 8)	32KB (32K x 8)
RAM size	16K x 8	8K x 8

Request a quote on any NXP Semiconductors MK10 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
