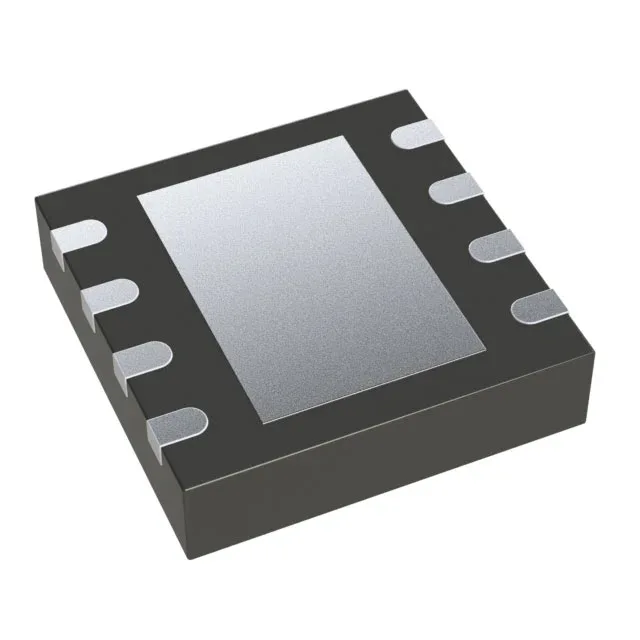

NXP Semiconductors TJA1044VTKZ CANbus transceiver, half-duplex, 5 Mbps data rate, AEC-Q100 automotive grade, 8-VDFN exposed pad package, tape and reel.
| Parameter | Value |
|---|---|
| Type | Transceiver |
| Mounting | Surface Mount |
| Supply voltage | 4.75V ~ 5.25V |
| Protocol | CANbus |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Duplex | Half |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Data rate | 5Mbps |
| Qualification | AEC-Q100 |
| Case | 8-VDFN Exposed Pad |
| Receiver hysteresis | 300 mV |
| Number of drivers (Receivers) | 1/1 |
The TJA1044VTKZ is a half-duplex CAN transceiver from NXP, handling 1 driver and 1 receiver in a single 8-HVSON (3x3 mm) package. It interfaces a CAN protocol controller to the physical bus, supporting data rates up to 5 Mbps.
