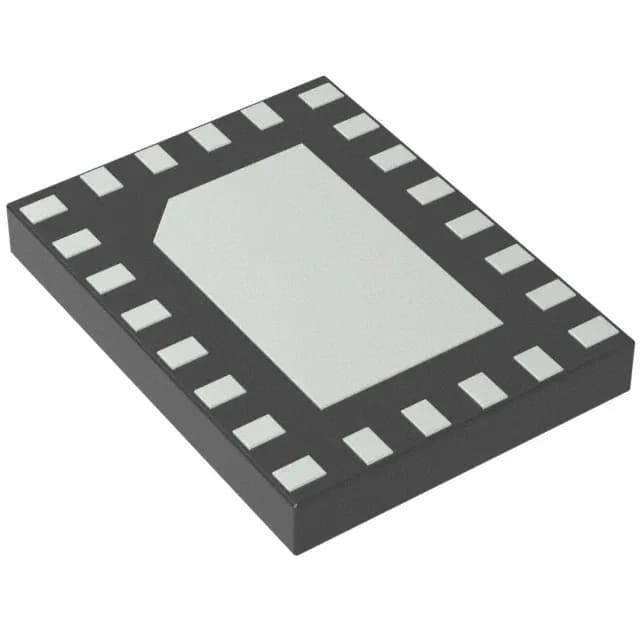

PTN36502HQX Buffer, ReDriver USB 3.1 DP 1.2, 5.4 Gbps, QFN

MPNPTN36502HQX
End of Life

NXP PTN36502HQX Type Buffer, ReDriver, Input Differential, Output Differential, 5.4 Gbps, 140 ps delay, 1.7V~1.9V supply, 225 mA supply current, -40°C~85°C, 24-XFQFN Exposed Pad.

$5.04Ref. price · indicative, final on quote
PTN36502HQX datasheet
Packaging24-XFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

PTN36502HQX Technical Specifications
ParameterValue
TypeBuffer, ReDriver
Mounting typeSurface Mount
Voltage1.7V ~ 1.9V
Current - supply225mA
Operating temperature-40°C ~ 85°C (TA)
InputDifferential
OutputDifferential
PackageTape & Reel (TR); Cut Tape (CT)
Delay time140ps
ApplicationsUSB Type C
Case24-XFQFN Exposed Pad
Data rate5.4Gbps
Signal conditioningInput Equalization, Output De-Emphasis

Product details

Signal conditioning for USB 3.1 and DisplayPort 1.2 over Type-C

The NXP PTN36502HQX is a single-channel reDriver and signal conditioner for USB Type-C applications, handling USB 3.1 SuperSpeed and DisplayPort 1.2 lanes. It accepts differential input and delivers differential output at up to 5.4 Gbps, with a propagation delay of 140 ps.

Active production, no LTB risk

The PTN36502HQX carries an active lifecycle status and ROHS3 compliance. No end-of-life notification or last-time-buy schedule is in effect. For new designs or BOM freeze, this part is a current-production choice with no near-term obsolescence risk.

Frequently asked questions

Can PTN36502HQX be used with DisplayPort 1.2?

Yes. The PTN36502HQX supports DisplayPort 1.2 HBR2 at 5.4 Gbps per lane, which is the maximum data rate defined in the DP 1.2 specification. It is designed for USB Type-C alternate-mode DP 1.2 signal conditioning.
