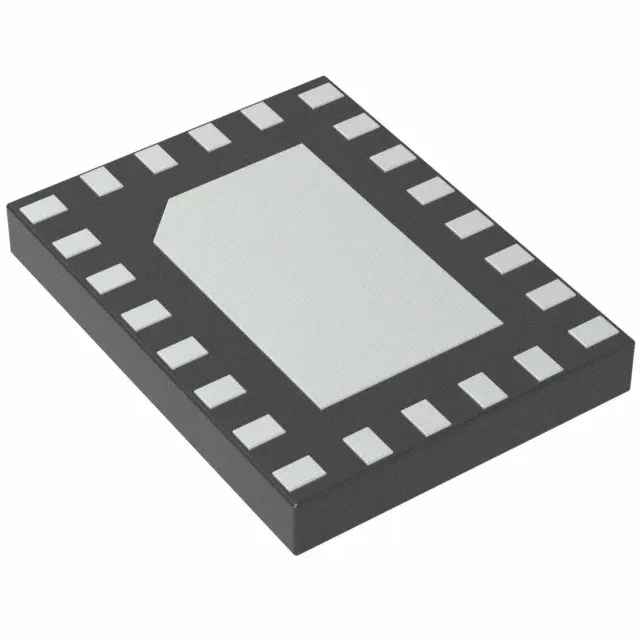

PTN38003AEWY
NXP Semiconductors
Tape & Reel (TR); Cut Tape (CT)-20°C ~ 85°C (TA)ReDriver
Ref. price$5.56
Lead time on requestGet quote
NXP Semiconductors PTN3 Discrete Semiconductors Series
3 variants · NXP Semiconductors
About the NXP Semiconductors PTN3 Discrete Semiconductors Series
The NXP Semiconductors PTN3 Discrete Semiconductors Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by applications, case and voltage, so you can match the exact applications your application requires using the selection guide below. All listed NXP Semiconductors PTN3 Discrete Semiconductors Series part numbers are active and orderable.
Select a variant by
- Applications
- DisplayPort, USB Type C · LVDS · USB Type C
- Case
- 24-XFQFN Exposed Pad · 36-WFLGA Exposed Pad · 56-VFQFN Exposed Pad
- Voltage
- 1.7V ~ 1.9V · 3.3V
- Current - supply
- 225mA · 250mA
- Data rate
- 5.4Gbps · 10Gbps
- Delay time
- 70ps · 140ps
- Operating temperature
- -40°C ~ 85°C (TA) · -20°C ~ 85°C (TA)
- Signal conditioning
- Input Equalization, Output De-Emphasis · Input Equalization, Output Pre-Emphasis
Shared specifications
- Mounting
- Surface Mount
- Package
- Tape & Reel (TR); Cut Tape (CT)
Variant comparison
| Parameter | PTN38003AEWY | PTN36502HQX | PTN3460BS/F2,518 |
|---|---|---|---|
| Applications | DisplayPort, USB Type C | USB Type C | LVDS |
| Case | 36-WFLGA Exposed Pad | 24-XFQFN Exposed Pad | 56-VFQFN Exposed Pad |
| Voltage | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 3.3V |
| Current - supply | 250mA | 225mA | — |
| Data rate | 10Gbps | 5.4Gbps | — |
| Delay time | 70ps | 140ps | — |
| Operating temperature | -20°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | — |
| Signal conditioning | Input Equalization, Output Pre-Emphasis | Input Equalization, Output De-Emphasis | — |
Request a quote on any NXP Semiconductors PTN3 Discrete Semiconductors Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
