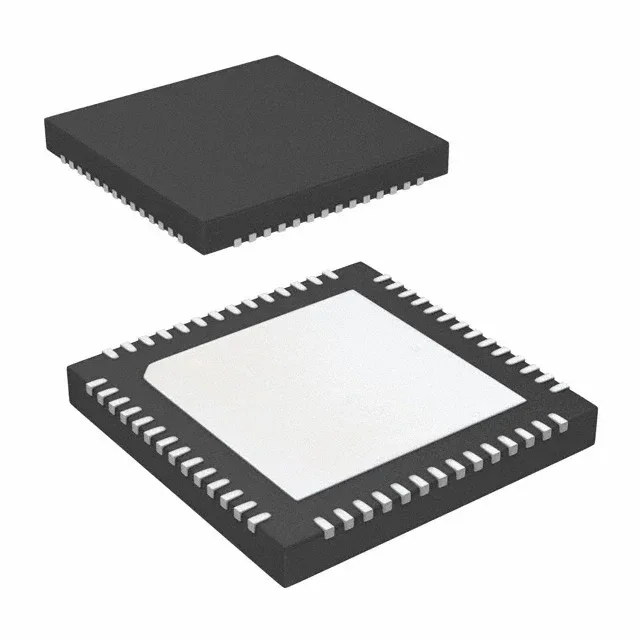

NXP PTN3460BS/F6Y LVDS Bridge IC, 56-HVQFN, Active

MPNPTN3460BS/F6Y
End of Life

NXP Semiconductors PTN3460BS/F6Y LVDS interface bridge IC, 56-VFQFN Exposed Pad (56-HVQFN 7x7), 3.3V supply, surface mount, Tape & Reel or Cut Tape.

$4.79Ref. price · indicative, final on quote
PTN3460BS/F6Y datasheet
Packaging56-VFQFN Exposed Pad
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

PTN3460BS/F6Y Technical Specifications
ParameterValue
Mounting typeSurface Mount
Voltage3.3V
PackageTape & Reel (TR); Cut Tape (CT)
ApplicationsLVDS
Case56-VFQFN Exposed Pad

Product details

LVDS bridge role and supply rail

The PTN3460BS/F6Y is an LVDS interface bridge IC from NXP, designed to translate between parallel RGB and LVDS display interfaces — a common signal-chain component in embedded systems connecting a processor or FPGA to a flat-panel display. A single 3.3V supply rail powers the device, which simplifies the power tree in designs where the core logic and I/O already run at 3.3V — no additional regulator or level-shifting is needed for the bridge itself.

ROHS3 compliant per the lifecycle record, which covers the full RoHS exemption list including lead in high-melting-temperature solders — no additional exemption documentation is typically required for EU market placement.

Frequently asked questions

What is PTN3460BS/F6Y's listed application?

The PTN3460BS/F6Y is an LVDS interface bridge IC — it converts between parallel RGB and LVDS display signaling, commonly used to connect embedded processors or FPGAs to LCD panels in industrial, medical, or consumer displays.

What compliance documentation does NXP provide for PTN3460BS/F6Y?

The PTN3460BS/F6Y is ROHS3 compliant per the lifecycle record. Standard NXP compliance documentation (RoHS declaration, REACH SVHC statement) is available through the manufacturer's support portal.
