PCAL6416AEVJ
MPN PCAL6416AEVJ
End of Life
Spot Stock · 24-48h Dispatch
100% Original Sealed
IC XPND 400KHZ I2C SMBUS 24VFBGA
In Stock: 12 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$1.75 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$1.75
10+ pcs
$1.71
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (13)

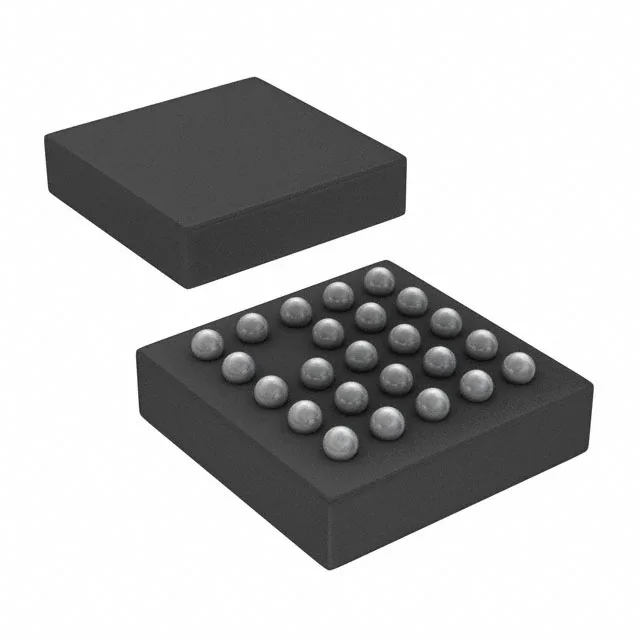

Package / Case 24-VFBGA
Supply Voltage 1.65V ~ 5.5V
Speed / Frequency 400 kHz
Output / Current 10mA, 25mA
Full Technical Specifications
13 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | Agile |
| Output type | Open Drain, Push-Pull |
| Mounting | Surface Mount |
| Supply voltage | 1.65V ~ 5.5V |
| Current - output source (Sink) | 10mA, 25mA |
| Clock frequency | 400 kHz |
| Interface | I²C, SMBus |
| Operating temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | POR |
| Number of i (O) | 16 |
| Case | 24-VFBGA |
| Interrupt output | Yes |
