NXP Semiconductors MVF51NN151CMK50 — Discrete Semiconductors
NXP Semiconductors

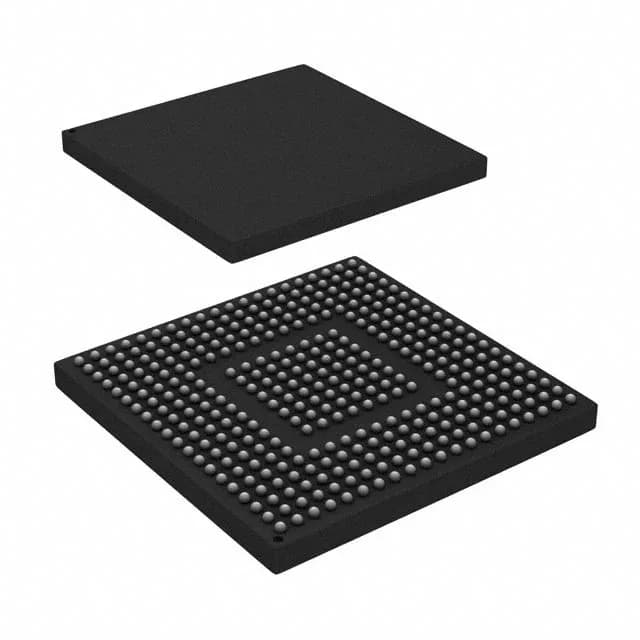

NXP MVF51NN151CMK50 Vybrid ARM Cortex-A5 MPU, 500 MHz

MPNMVF51NN151CMK50
End of Life

NXP Vybrid VF5xx series MVF51NN151CMK50, ARM Cortex-A5 MPU, 500 MHz, 1 core 32-bit, USB 2.0 OTG + PHY, dual 10/100 Ethernet, LPDDR2/DDR3 DRAM controller, -40 to 85°C, 364-LFBGA (17x17), ROHS3.

$40.94Ref. price · indicative, final on quote
MVF51NN151CMK50 datasheet
Packaging364-LFBGA
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MVF51NN151CMK50 Technical Specifications
ParameterValue
SeriesVybrid, VF5xx
Mounting typeSurface Mount
Voltage - i (O)3.3V
Additional interfacesCAN, I²C, IrDA, LIN, SCI, SDHC, SPI, UART/USART
Display & interface controllersDCU, GPU, LCD, VideoADC, VIU
Operating temperature-40°C ~ 85°C (TA)
Number of cores (Bus width)1 Core, 32-Bit
USBUSB 2.0 OTG + PHY (1)
Speed500MHz
PackageTray
Ethernet10/100Mbps (2)
Core processorARM® Cortex®-A5
Case364-LFBGA
RAM controllersLPDDR2, DDR3, DRAM
Co-Processors (DSP)Multimedia; NEON™ MPE
Graphics accelerationYes

Product details

Vybrid VF5xx — 500 MHz Cortex-A5 for HMI and industrial gateway designs

The NXP MVF51NN151CMK50 is a single-core ARM Cortex-A5 MPU from the Vybrid VF5xx family, clocked at 500 MHz. It integrates a NEON MPE coprocessor for multimedia acceleration and a DRAM controller supporting LPDDR2 and DDR3. On the connectivity side it carries one USB 2.0 OTG port with integrated PHY and two 10/100 Ethernet MACs — enough to run a small HMI panel or an industrial protocol gateway without external PHY for the USB side. The industrial temperature range (-40 to 85°C) suits it for factory-floor enclosures, outdoor telecom cabinets, and railway-adjacent equipment where extended ambient temperatures are routine.

Active lifecycle — no LTB pressure

The MVF51NN151CMK50 carries an active product status and ROHS3 compliance. There is no last-time-buy window to track and no NRND flag — it remains a valid choice for new production builds.

Peripheral set for a single-chip gateway

Beyond the headline Ethernet and USB, the additional interfaces cover CAN, I²C, SPI, UART/USART, SDHC, IrDA, and LIN — enough to connect a CANopen drive, an I²C temperature sensor, a UART-to-RS485 converter, and an SD card for data logging without external bridge chips. The display and interface controllers (DCU, GPU, LCD, VideoADC, VIU) support a direct connection to a parallel or LVDS display panel, which keeps the BOM count low for a combined HMI-and-control board.

Frequently asked questions

Does MVF51NN151CMK50 support Ethernet?

Yes — it integrates two 10/100 Mbps Ethernet MACs. An external PHY is required for each port, but the MAC-to-PHY interface is on-chip, saving a separate Ethernet controller IC.

What are the differences between MVF51NN151CMK50 and MVF51NN151CMK40?

The primary difference is core speed: the MVF51NN151CMK50 runs at 500 MHz, while the MVF51NN151CMK40 runs at 400 MHz. Both share the same ARM Cortex-A5 core, Vybrid VF5xx family, package (364-LFBGA), and peripheral set including USB 2.0 OTG + PHY and dual 10/100 Ethernet. The 500 MHz part provides roughly 25% more processing headroom for graphics or protocol-stack throughput.

What is MVF51NN151CMK50's listed USB interface?

That means no external USB transceiver is needed for host or device operation — the PHY is inside the package.
