NXP Semiconductors MPXM2202GS — Analog & Data Acquisition

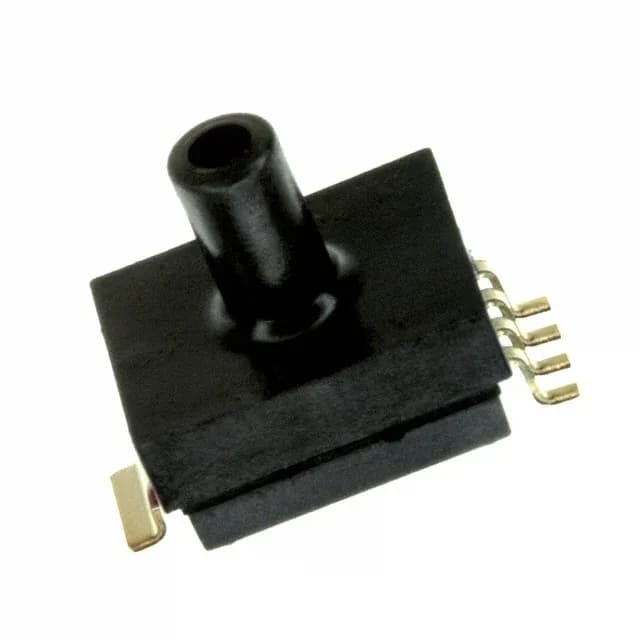

NXP MPXM2202GS Pressure Sensor, 29 PSI Vented Gauge, 5-MPAK

MPNMPXM2202GS
End of Life

NXP MPX2202 series MPXM2202GS vented gauge pressure sensor, 29.01 PSI (200 kPa) operating, 0 mV ~ 40 mV (10V) Wheatstone bridge output, -40°C ~ 125°C, 5-SMD Module Top Port (5-MPAK), Gull Wing, Tube.

$13.63Ref. price · indicative, final on quote
NXP Semiconductors MPXM2202GS datasheet (PDF)
Packaging5-SMD Module, Top Port
RoHSROHS3 Compliant
SeriesMPX2202
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

MPXM2202GS specifications
ParameterValue
SeriesMPX2202
Output typeWheatstone Bridge
MountingSurface Mount
Pressure typeVented Gauge
Voltage10V ~ 16V
Operating temperature-40°C ~ 125°C
Output0 mV ~ 40 mV (10V)
PackageTube
FeaturesTemperature Compensated
Port sizeMale - 0.12\" (2.97mm) Tube
Port styleBarbless
ApplicationsBoard Mount
Case5-SMD Module, Top Port
Maximum pressure58.02PSI (400kPa)
Termination styleGull Wing
Operating pressure29.01PSI (200kPa)

Product details

Board-mount pressure sensor for 200 kPa gauge measurements

The NXP MPXM2202GS is a temperature-compensated, vented gauge pressure sensor from the MPX2202 series, packaged in a surface-mount module with a top port and barbless 0.12" (2.97 mm) tube connection. It is designed for board-mount applications where a ratiometric Wheatstone bridge output is needed, delivering 0 mV to 40 mV at 10 V excitation over a 29.01 PSI (200 kPa) operating pressure range.

What the 0 mV to 40 mV output means for your signal chain

The unamplified 40 mV full-scale span at 10 V supply is a differential signal from the internal Wheatstone bridge. This low-level output requires an instrumentation amplifier with a gain stage to bring the signal into the ADC range.

For BOM planning, this removes the last-time-buy risk that often accompanies older pressure sensor families.

Frequently asked questions

What is the operating pressure range of MPXM2202GS?

The MPXM2202GS has an operating pressure of 29.01 PSI (200 kPa) vented gauge, with a maximum overpressure rating of 58.02 PSI (400 kPa). It is a vented gauge sensor, meaning it measures pressure relative to ambient atmospheric pressure through the vent port.

Is MPXM2202GS a vented gauge pressure sensor?

Yes, the MPXM2202GS is a vented gauge pressure sensor. The pressure type is explicitly listed as Vented Gauge, and the port style is barbless with a male 0.12" (2.97 mm) tube for pressure connection.

What is the output type and voltage of MPXM2202GS?

The output type is a Wheatstone bridge delivering a differential signal of 0 mV to 40 mV at 10 V excitation. The supply voltage range is 10 V to 16 V, and the output is ratiometric to the supply.

Is MPXM2202GS RoHS compliant?

Yes, the MPXM2202GS is ROHS3 Compliant, meeting the latest Restriction of Hazardous Substances directive requirements.
