NXP Semiconductors MPXH6300A6U — Memory (DRAM / SRAM / Flash / EEPROM)
NXP Semiconductors

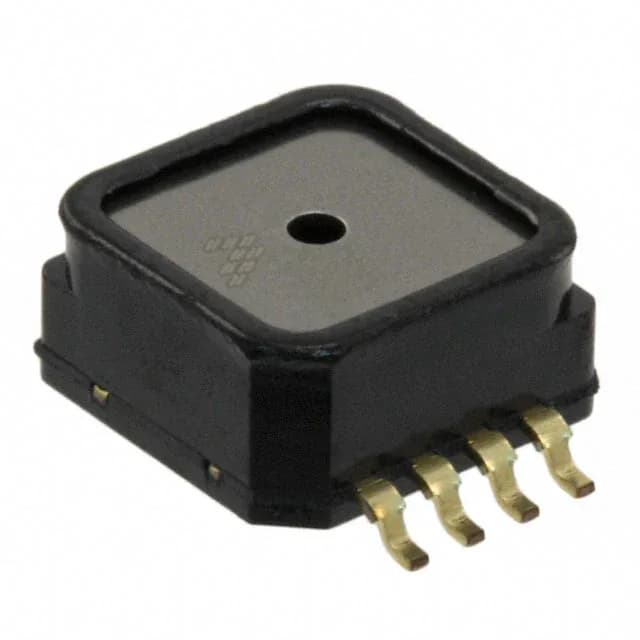

MPXH6300A6U Pressure Sensor, 2.9-44.09 PSI, Analog Output

MPNMPXH6300A6U
End of Life

NXP MPXH6300A6U, series MPXH6300A, absolute pressure sensor, 2.9 PSI ~ 44.09 PSI (20 kPa ~ 304 kPa), analog voltage output 0.3 V ~ 4.9 V, ±1.5% accuracy, temperature compensated, surface mount 8-SOIC, -40°C ~ 125°C.

$21.63Ref. price · indicative, final on quote
MPXH6300A6U datasheet
Packaging8-SOIC (0.295", 7.50mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MPXH6300A6U Technical Specifications
ParameterValue
SeriesMPXH6300A
Output typeAnalog Voltage
Mounting typeSurface Mount
Pressure typeAbsolute
Voltage4.74V ~ 5.46V
Operating temperature-40°C ~ 125°C
Output0.3 V ~ 4.9 V
PackageTube
Accuracy±1.5%
FeaturesTemperature Compensated
Port styleNo Port
ApplicationsBoard Mount
Case8-SOIC (0.295\", 7.50mm Width)
Maximum pressure174.05PSI (1200kPa)
Termination styleGull Wing
Operating pressure2.9PSI ~ 44.09PSI (20kPa ~ 304kPa)

Product details

What this sensor is and where it fits

The NXP MPXH6300A6U is a board-mount absolute pressure sensor in the MPXH6300A series, delivering a ratiometric analog voltage output proportional to applied pressure. It covers an operating pressure range of 2.9 PSI to 44.09 PSI (20 kPa to 304 kPa) and outputs a 0.3 V to 4.9 V signal.

Lifecycle and compliance

The MPXH6300A6U is listed as Active in production status and is ROHS3 compliant. No end-of-life notice or last-time-buy window is indicated, so it remains a current-production line item suitable for new designs and ongoing BOMs. The RoHS3 compliance covers the full substance restriction list including the four phthalates, which simplifies EU and global market compliance documentation.

Frequently asked questions

Is the MPXH6300A6U RoHS compliant?

Yes, it is ROHS3 compliant, covering the full restricted substance list including the four phthalates.

What is the operating pressure range of the MPXH6300A6U?

The operating pressure range is 2.9 PSI to 44.09 PSI, which corresponds to 20 kPa to 304 kPa absolute.

Where can I buy the MPXH6300A6U?

This part is available through independent distribution and is quoted to order against an RFQ. Contact our sales desk for current pricing and delivery commitment.
