132 MHz e200z6 core — what it means for the control loop

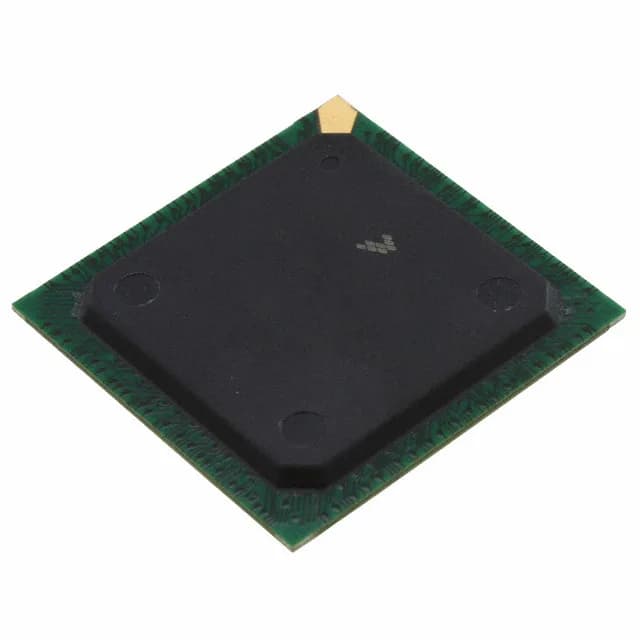

The NXP MPC5553MVZ132 is a 32-bit single-core MCU from the MPC55xx Qorivva family, built around the Power Architecture e200z6 core running at 132 MHz. It carries 1.5 MB of on-chip Flash and 64K x 8 of RAM, with a 40-channel 12-bit ADC array and a full set of connectivity peripherals including CANbus, Ethernet, SCI, and SPI. The -40°C to 125°C operating range and 324-ball PBGA package (23x23 mm) target automotive powertrain, industrial motor drives, and heavy-equipment ECUs where deterministic real-time control and extended temperature tolerance are non-negotiable.
ADC array — 40 channels, 12 bits
The integrated 40-channel 12-bit ADC is one of the densest on-chip conversion arrays in this MCU tier. For a system architect, that means fewer external multiplexers or signal-conditioning ICs when monitoring multiple analog sensors — think throttle position, exhaust pressure, and oil temperature on a single engine controller, or current/voltage feedback from several motor phases. Each channel is 12-bit resolution; the effective number of bits (ENOB) depends on sample rate and input frequency, but the raw channel count alone simplifies layout and BOM consolidation.
Connectivity and peripherals
The part integrates DMA, POR, PWM, and WDT alongside CANbus, EBI/EMI, Ethernet, SCI, and SPI. For a gateway node or a distributed control module, the Ethernet and dual CAN interfaces allow direct connection to a vehicle backbone or factory-floor network without an external communication co-processor. The 220 general-purpose I/O give plenty of headroom for parallel sensor inputs, actuator drivers, and display interfaces.
Supply and clocking
Core logic runs from a 1.35 V to 1.65 V supply, which keeps dynamic power in check at 132 MHz. The external oscillator input means the system clock source is chosen by the designer — a crystal, MEMS resonator, or external clock — giving flexibility in timing budget and jitter management. Surface-mount assembly on a 324-ball PBGA with a 23x23 mm footprint demands a multi-layer PCB with controlled-impedance routing for the Ethernet and high-speed bus lines.
Lifecycle and compliance
The MPC5553MVZ132 carries an Active product status and is ROHS3 compliant. No last-time-buy notice or phase-out schedule is in effect. For a BOM freeze or a long-production-run design, this part is a stable choice — no imminent obsolescence risk. The series is MPC55xx Qorivva, and NXP continues to support this architecture for automotive and industrial programs.
