Core and memory — 100 MHz Cortex-M4 with 256 KB flash
The MK51DN256CMD10: The 32-bit single-core architecture delivers the DSP and floating-point throughput of the Cortex-M4 without the power penalty of a multi-core part, making it a fit for motor control, sensor fusion, or human-machine interface applications that need deterministic response.

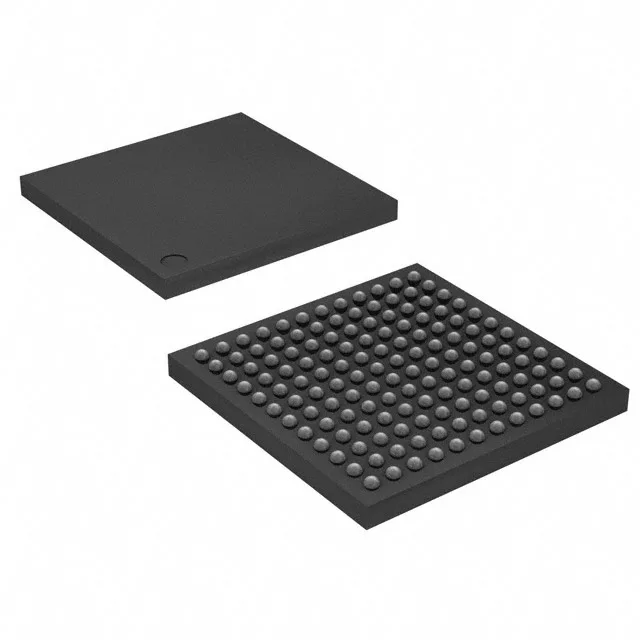

Package and integration — 144-MAPBGA, 94 I/O
Housed in a 144-MAPBGA (13x13 mm) package with 94 general-purpose I/O, this MCU demands a multi-layer PCB for fan-out of the fine-pitch BGA balls — the 0.50 mm pitch is manageable with standard 4-layer stack-up, but the inner rows require via-in-pad or microvias for full breakout.
Peripheral set and connectivity
The data-conversion subsystem packs 41 channels of 16-bit ADC and two 12-bit DACs, so a multi-sensor acquisition front-end can sample analog inputs at 16-bit resolution and drive an analog output without an external converter. Additional peripherals include DMA for memory-to-peripheral transfers without CPU load, an I²S audio interface, a segment LCD controller, PWM for motor or LED dimming, and a watchdog timer — the LCD controller is a distinguishing feature versus the K60 family, which omits it.
