40 MHz core, 16 KB flash — where the S08 fits

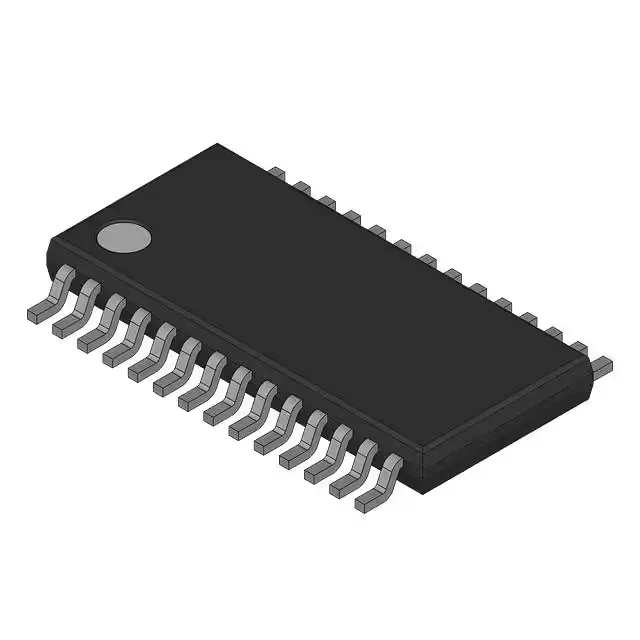

The MC9S08SH16MTL: That memory split — 16 KB program space against 1 KB data — suits control loops and sensor fusion where the code fits in a single bank and the working set stays small, like a motor commutation routine or a LIN-bus node handling a few analog inputs.
Peripheral set and signal chain
On-chip peripherals include LVD (low-voltage detect), POR (power-on reset), PWM, and a watchdog timer — these handle brownout recovery and pulse-width generation without external supervisor ICs. The 16-channel 10-bit ADC reads up to 16 analog inputs, enough for a multi-sensor node reading temperature, pressure, and position on one die. Connectivity covers I²C, LINbus, SCI (UART), and SPI — the LINbus interface is the differentiator here, making this part a natural fit for automotive body electronics or industrial subnets where LIN is the physical layer. The 23 general-purpose I/O lines leave room for local indicators, relay drivers, or a small keypad matrix.
