NXP Semiconductors MC34978AES — Discrete Semiconductors
NXP Semiconductors

NXP MC34978AES Multiple Switch Detection IC, 32-QFN, Active

MPNMC34978AES
End of Life

NXP Semiconductors MC34978AES, specialized interface IC for multiple switch detection, 32-VFQFN Exposed Pad, Tray, 4.5V–36V supply, Surface Mount, Wettable Flank.

$5.45Ref. price · indicative, final on quote
MC34978AES datasheet
Packaging32-VFQFN Exposed Pad
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MC34978AES Technical Specifications
ParameterValue
Mounting typeSurface Mount, Wettable Flank
Voltage4.5V ~ 36V
PackageTray
ApplicationsMultiple Switch Detection
Case32-VFQFN Exposed Pad

Product details

Switch-detection interface in a 32-QFN package

The NXP MC34978AES is a specialized interface IC for multiple switch detection — think banked switch inputs on a control panel or automotive body module where you need to read a row of buttons or limit switches over a single serial link.

Package and board-fit details

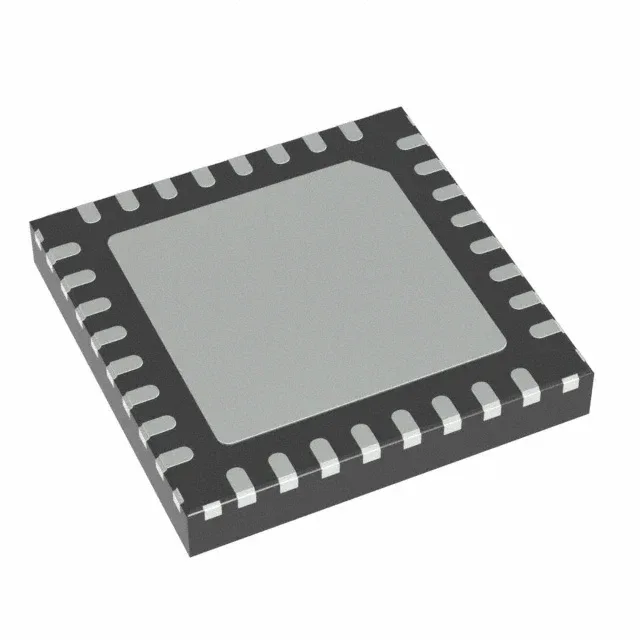

Housed in a 32-VFQFN exposed-pad package (5x5 mm body, supplier device package 32-QFN-EP), the MC34978AES has a wettable flank option on the package terminals — this means the solder fillet climbs the side of the QFN, giving a visible joint after reflow that AOI can inspect, unlike a standard QFN where the joint is hidden under the body.

Lifecycle and compliance snapshot

RoHS3 compliant (2011/65/EU + 2015/863), with no exemptions claimed — no lead, mercury, cadmium, or phthalates above the threshold limits.
