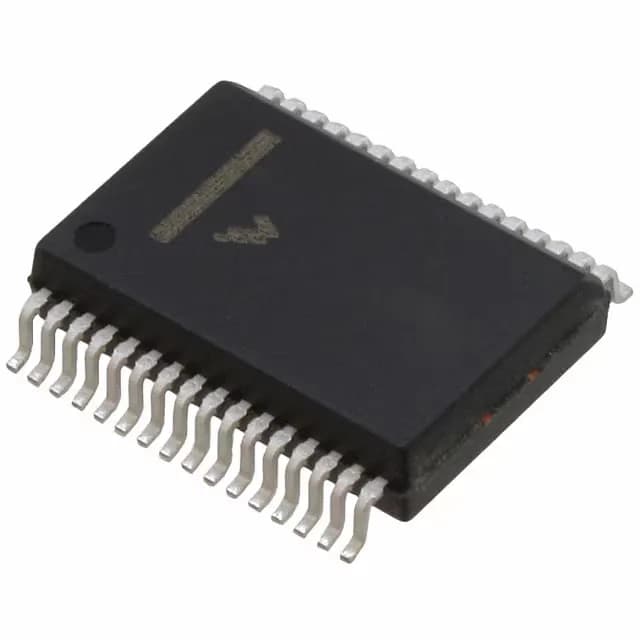

NXP Semiconductors MC33GD3100A3EK
NXP Semiconductors

MC33GD3100A3EK IGBT Gate Driver, 15A Peak, 3.3V, Active

MPNMC33GD3100A3EK
End of Life

NXP MC33GD3100A3EK single-channel IGBT/N-Channel MOSFET gate driver, 15A peak source/sink, 3.3V supply, half-bridge configuration, -40°C to +125°C, 32-BSSOP surface-mount package, ROHS3 compliant, active production.

$11.93Ref. price · indicative, final on quote
MC33GD3100A3EK datasheet
Packaging32-BSSOP (0.295", 7.50mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MC33GD3100A3EK Technical Specifications
ParameterValue
Gate typeIGBT, N-Channel MOSFET
Channel typeSingle
Mounting typeSurface Mount
Voltage3.3V
Current - peak output (Source, sink)15A, 15A
Operating temperature-40°C ~ 125°C (TA)
PackageTube
Case32-BSSOP (0.295\", 7.50mm Width)
Number of drivers1
Driven configurationHalf-Bridge

Product details

Single-channel 15 A gate driver for IGBT and MOSFET modules

The NXP MC33GD3100A3EK is a single-channel gate driver for IGBT and N-Channel MOSFET power switches, configured as a half-bridge driver. It delivers 15 A peak source and 15 A peak sink current.

Temperature range and environment

Rated for -40°C to 125°C ambient, this driver is suited for under-hood automotive traction inverters, industrial servo drives, and outdoor solar inverter stages.

Sourcing and lifecycle

The part is ROHS3 compliant, covering the latest EU restriction exemptions.

Frequently asked questions

What compliance documentation does NXP provide for MC33GD3100A3EK?

The part is ROHS3 compliant. Standard NXP documentation includes the datasheet, application notes, and a PCN notification service for any manufacturing changes. REACH and conflict minerals declarations are typically available from NXP's compliance portal.

What is MC33GD3100A3EK's gate type and driven configuration?

It drives IGBT and N-Channel MOSFET gates in a half-bridge configuration. The single-channel output can serve as the high-side or low-side driver in one inverter leg, or as a standalone switch driver.
