NXP USA Inc. MKL0 Series

53 variants · NXP USA Inc.All Microcontrollers & Processors (MCU / MPU / DSP) →

About the NXP USA Inc. MKL0 Series

The NXP USA Inc. MKL0 Series series groups 53 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common core processor of ARM® Cortex®-M0+, core size of 32-Bit Single-Core and oscillator type of Internal. Variants differ by case, connectivity and mounting, so you can match the exact case your application requires using the selection guide below.

Select a variant by

Case: 16-UFQFN Exposed Pad · 20-UFBGA, WLCSP · 20-XFBGA, WLCSP · 24-VFQFN Exposed Pad · 32-LQFP · 32-VFQFN Exposed Pad · 48-LQFP
Connectivity: I2C, SPI, UART/USART · I²C, SPI, UART/USART
Mounting: Surface Mount · Surface Mount, Wettable Flank
Operating temperature: -40°C ~ 85°C (TA) · -40°C ~ 105°C (TA) · -40°C~85°C(TA) · -40°C~105°C(TA)
Package: Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tray
Peripherals: Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT · Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program memory size: 8KB (8K x 8) · 16KB (16K x 8) · 32KB (32K x 8)
RAM size: 1K x 8 · 2K x 8 · 4K x 8

Shared specifications

Core processor: ARM® Cortex®-M0+
Core size: 32-Bit Single-Core
Oscillator type: Internal
Program memory type: FLASH
Speed: 48MHz
Voltage - supply (Vcc (Vdd)): 1.71V ~ 3.6V

Variant comparison

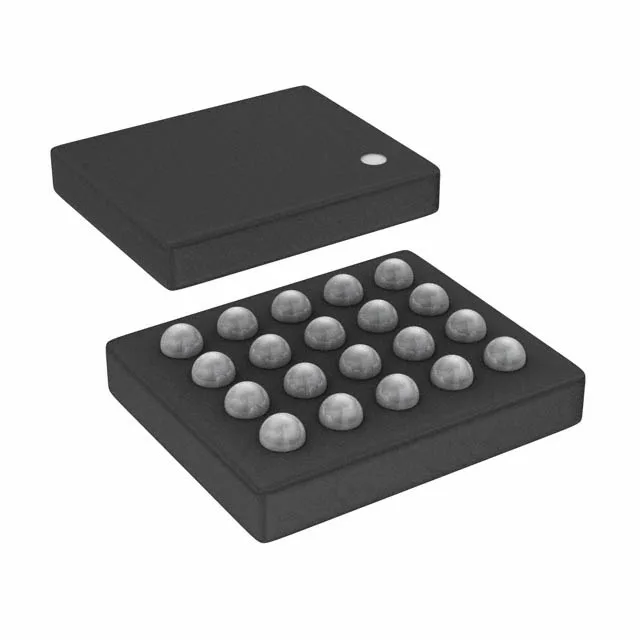

Parameter	MKL02Z32CAF4R	MKL04Z32VLC4	MKL05Z32VFM4	MKL05Z8VLC4	MKL04Z8VLC4	MKL02Z8VFG4
Case	20-UFBGA, WLCSP	32-LQFP	32-VFQFN Exposed Pad	32-LQFP	32-LQFP	16-UFQFN Exposed Pad
Connectivity	I2C, SPI, UART/USART	I²C, SPI, UART/USART	I²C, SPI, UART/USART	I²C, SPI, UART/USART	I²C, SPI, UART/USART	I²C, SPI, UART/USART
Mounting	Surface Mount	Surface Mount	Surface Mount, Wettable Flank	Surface Mount	Surface Mount	Surface Mount
Operating temperature	-40°C ~ 85°C (TA)	-40°C ~ 105°C (TA)	-40°C ~ 105°C (TA)	-40°C ~ 105°C (TA)	-40°C ~ 105°C (TA)	-40°C~105°C(TA)
Package	Tape & Reel (TR) Cut Tape (CT)	Tray	Tray	Tray	Tray	Tray
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT	Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT	Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT	Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT	Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program memory size	32KB (32K x 8)	32KB (32K x 8)	32KB (32K x 8)	8KB (8K x 8)	8KB (8K x 8)	8KB (8K x 8)
RAM size	4K x 8	4K x 8	4K x 8	1K x 8	1K x 8	1K x 8

Request a quote on any NXP USA Inc. MKL0 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
