48 MHz Cortex-M0+ in a 2×1.61 mm WLCSP
The NXP MKL03Z32CBF4R is a 32-bit ARM Cortex-M0+ microcontroller from the Kinetis KL03 series, clocked at 48 MHz. It packs 32 KB of Flash and 2 KB of SRAM, with I²C, SPI, and UART/USART connectivity.
What the 48 MHz and memory mean for your BOM
The 48 MHz Cortex-M0+ is the entry-level sweet spot for simple control loops, sensor polling, and I²C/SPI bridge tasks. 32 KB Flash fits a modest firmware image — think bootloader plus a single application layer — and 2 KB SRAM limits buffering to a few hundred bytes. If your design needs more headroom for data logging or a TCP/IP stack, the next step up in the KL03 family adds Flash and SRAM but keeps the same WLCSP footprint. For a dedicated PWM driver or a UART-to-I²C gateway, this is the right fit.

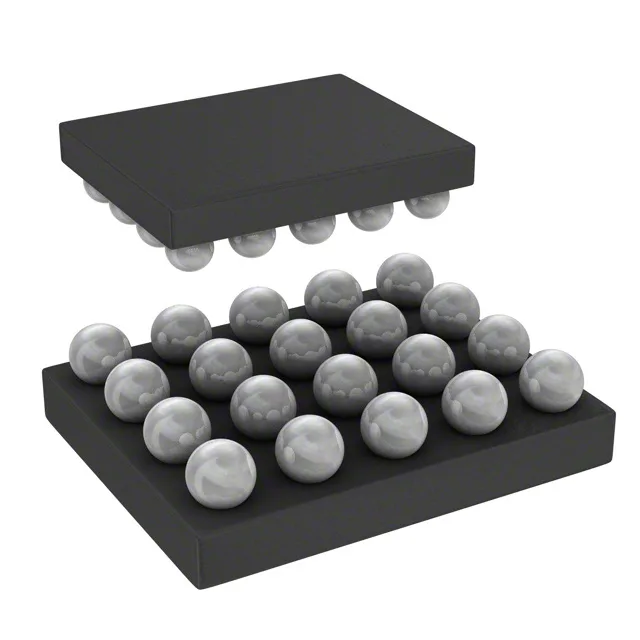

Integration note — WLCSP handling
The 20-WLCSP is a direct-attach package; no socket exists. Board design needs a solder-mask-defined pad for the solder paste.
