528 MHz Cortex-M7 — what it buys you on the bus
The NXP MIMXRT1062CVL5A is a 32-bit ARM Cortex-M7 MCU from the RT1060 series, clocked at 528 MHz with a single core. That clock rate puts it ahead of most general-purpose MCUs in this package class; it handles real-time control loops and protocol stacks without an external FPGA for tasks like motor field-oriented control or gigabit Ethernet bridging. The 1M x 8 RAM gives enough headroom for large frame buffers or dual protocol stacks, and the external program memory architecture means firmware size is limited only by the attached Flash chip — useful for complex HMI or IoT gateway images.
Connectivity mix — Ethernet and CAN on the same die

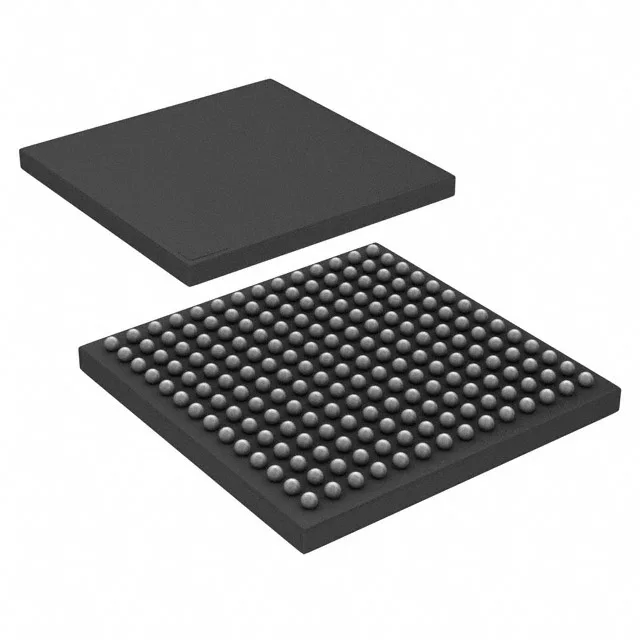

This part carries Ethernet, CAN, USB OTG, and multiple serial interfaces (UART, SPI, I2C, SAI, SPDIF) plus SDIO for external storage. Yes, Ethernet and CAN can run simultaneously — the peripheral set is independent, so an industrial gateway can bridge a CANopen fieldbus to an Ethernet backbone without an external protocol converter. The 127 I/O lines in a 196-LFBGA (10x10) package pack dense routing; plan for a four-layer board to keep signal integrity on the high-speed interfaces.
The 3V to 3.6V supply range is standard for 3.3V logic.
