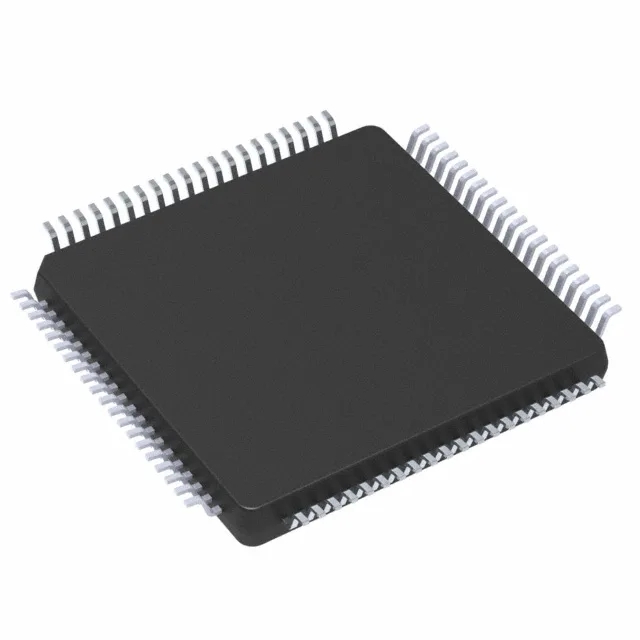

MIMXRT1011CAE4A
NXP USA Inc.
RT1010-40°C ~ 105°C (TJ)Tray
Ref. price$6.9800
Lead time on requestGet quote
NXP USA Inc. MIMXRT10 Series
52 variants · NXP USA Inc.
About the NXP USA Inc. MIMXRT10 Series
The NXP USA Inc. MIMXRT10 Series series groups 52 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common core processor of ARM® Cortex®-M7, core size of 32-Bit Single-Core and mounting of Surface Mount. Variants differ by case, connectivity and data converters, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 80-LQFP · 196-LFBGA
- Connectivity
- CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG · CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG · EBI/EMI, I2C, SAI, SPDIF, SPI, UART/USART, USB2.0 OTG
- Data converters
- A/D 15x12b · A/D 20x12b
- Number of i (O)
- 44 · 127
- Operating temperature
- -40°C ~ 105°C (TJ) · -40°C~105°C(TJ) · 0°C ~ 95°C (TJ) · 0°C~95°C(TJ)
- Package
- Tape & Reel (TR) · Tray
- Peripherals
- Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT · Brown-out Detect/Reset, DMA, POR, PWM, WDT
- Program memory type
- External Program Memory · FLASH
Shared specifications
- Core processor
- ARM® Cortex®-M7
- Core size
- 32-Bit Single-Core
- Mounting
- Surface Mount
- Oscillator type
- External, Internal
- Voltage - supply (Vcc (Vdd))
- 3V ~ 3.6V
Variant comparison

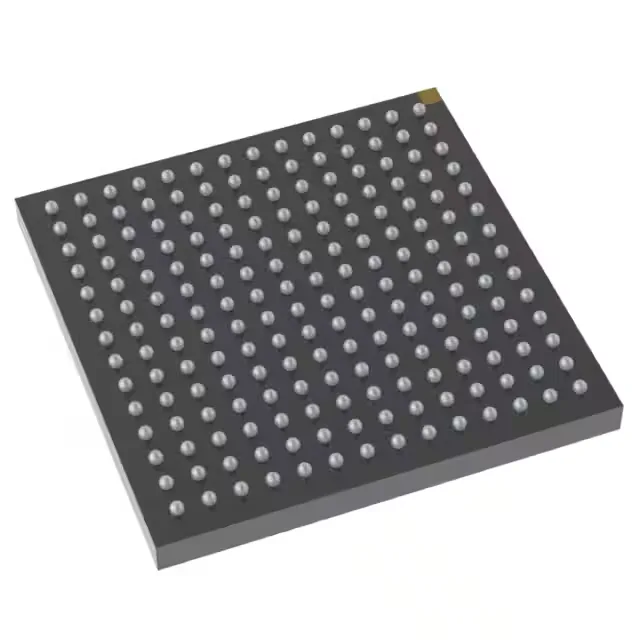

| Parameter | MIMXRT1011CAE4A | MIMXRT1051CVL5B | MIMXRT106FCVL5B | MIMXRT1052DVL6B | MIMXRT1051DVL6BR | MIMXRT1052DVJ6B |
|---|---|---|---|---|---|---|
| Case | 80-LQFP | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA |
| Connectivity | EBI/EMI, I2C, SAI, SPDIF, SPI, UART/USART, USB2.0 OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Data converters | A/D 15x12b | A/D 20x12b | A/D 20x12b | A/D 20x12b | A/D 20x12b | A/D 20x12b |
| Number of i (O) | 44 | 127 | 127 | 127 | 127 | 127 |
| Operating temperature | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C~105°C(TJ) | 0°C ~ 95°C (TJ) | 0°C~95°C(TJ) | 0°C ~ 95°C (TJ) |
| Package | Tray | Tray | Tray | Tray | Tape & Reel (TR) | Tray |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Program memory type | External Program Memory | External Program Memory | External Program Memory | External Program Memory | External Program Memory | External Program Memory |
Request a quote on any NXP USA Inc. MIMXRT10 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
