USB 2.0 half-duplex transceiver in a 24-QFN package
The USB3310C-CP-TR is a USB 2.0 half-duplex transceiver from Microchip's flexPWR™ series, integrating one driver and one receiver in a single 24-VFQFN exposed-pad package (4x4 mm). Rated for the industrial temperature range of -40°C to 85°C, it suits outdoor telecom, factory-floor USB ports, and automotive cabin-zone interfaces where the ambient can swing well beyond commercial limits. The 150 mV receiver hysteresis provides a noise margin on the USB DP/DM lines, helping maintain signal integrity in electrically noisy environments common in industrial and automotive applications.
Sourcing and lifecycle — active production, no obsolescence risk
This removes the single-source risk for BOM lines that depend on it. The part is ROHS3 compliant, meeting the current EU directive for lead-free soldering. Supplied in Tape & Reel (TR) or Cut Tape (CT) options, the TR variant is the standard production reel for automated pick-and-place assembly. The CT option suits prototype or low-volume builds.

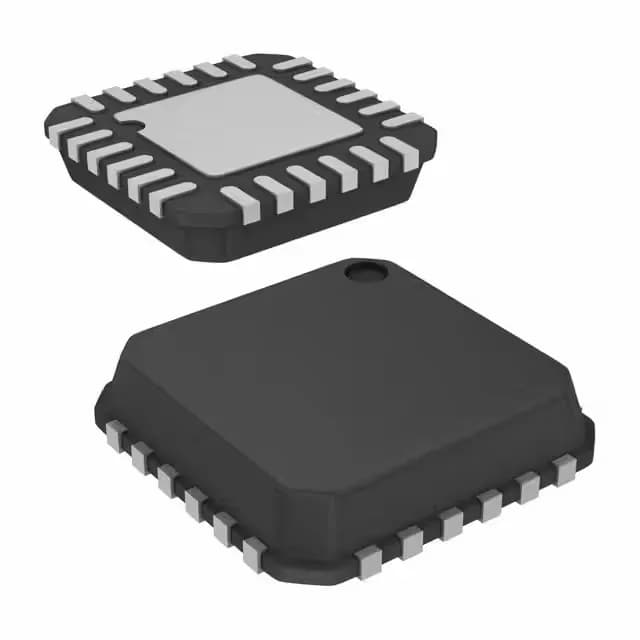

Package and footprint — 24-QFN with exposed pad
The 24-VFQFN exposed-pad package measures 4x4 mm. The exposed pad must be soldered to a thermal land on the PCB to achieve the rated thermal performance — a standard requirement for QFN packages carrying continuous USB traffic. Surface-mount assembly with a 0.50 mm pitch demands a controlled reflow profile and solder paste stencil design. The exposed pad also serves as a ground return for the USB interface; ensure the PCB land pattern matches the supplier device package drawing.
