Littelfuse Inc. S6002CSRP
MPN S6002CSRP
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed

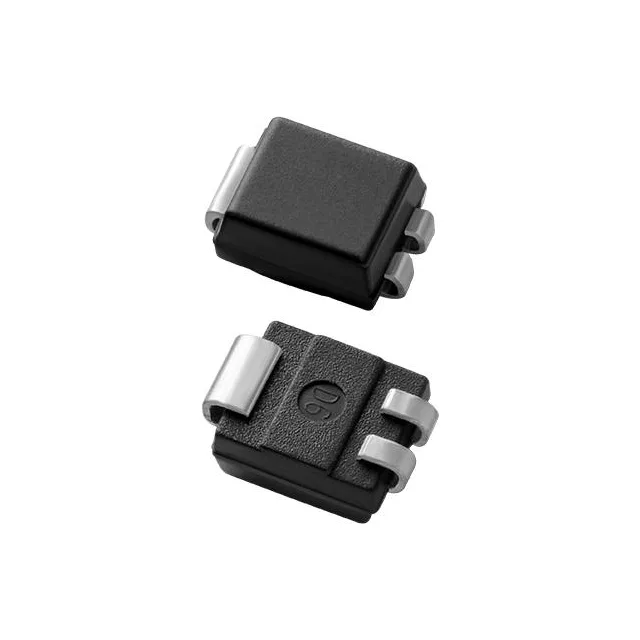

SCR 600V 2A COMPAK SMD
In Stock: 5,006 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$0.58 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$0.58
10+ pcs
$0.52
30+ pcs
$0.48
100+ pcs
$0.43
500+ pcs
$0.40
1,000+ pcs
$0.38
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (15)
Package / Case DO-214AA, SMB (3 Leads), Compak
Full Technical Specifications
15 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | EV |
| SCR type | Sensitive Gate |
| Mounting | Surface Mount |
| Voltage - off state | 600 V |
| Voltage - on state (Vtm) | 1.5 V |
| Voltage - gate trigger (Vgt) | 0.8 V |
| Current - hold (Ih) | 5 mA |
| Current - off state | 5 µA |
| Current - gate trigger (Igt) | 200 µA |
| Current - on state (It (AV)) | 1.2 A |
| Current - on state (It (RMS)) | 2 A |
| Current - non rep. surge 50, 60Hz | 22.5A @ 50Hz, 25A @ 60Hz |
| Operating temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | DO-214AA, SMB (3 Leads), Compak |
