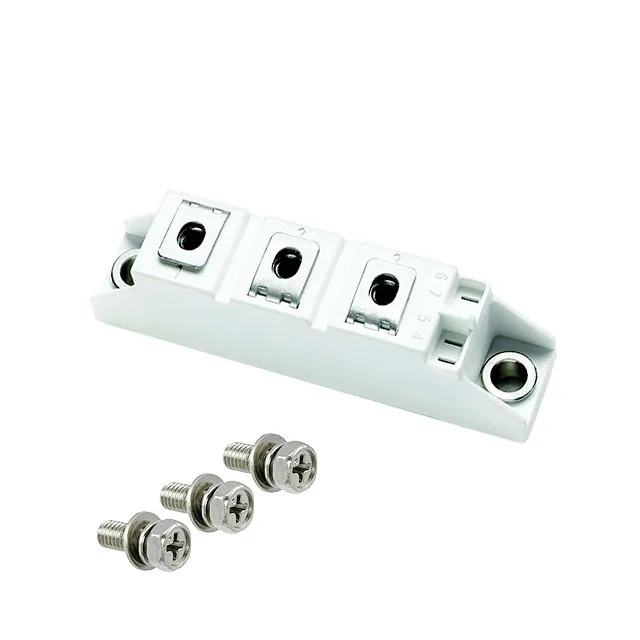

Littelfuse Inc. MD1690A-DKM2MM
MPNMD1690A-DKM2MM
Active
DIODE MODULE GP 1600V 90A A3
$42.05Ref. price · indicative, final on quote
PackagingA-3 Module
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Chassis Mount |
| Voltage - DC reverse (Vr) | 1600 V |
| Voltage - forward (Vf) (Max) @ if | 1.6 V @ 280 A |
| Current - reverse leakage @ vr | 500 µA @ 1600 V |
| Current - average rectified (Io) (per diode) | 90A |
| Operating temperature - junction | -40°C ~ 150°C |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Package | Bulk |
| Technology | Standard |
| Case | A-3 Module |
| Diode configuration | 1 Pair Common Cathode |
