Littelfuse Inc. MD16200S-DKM2MM
MPNMD16200S-DKM2MM
Active

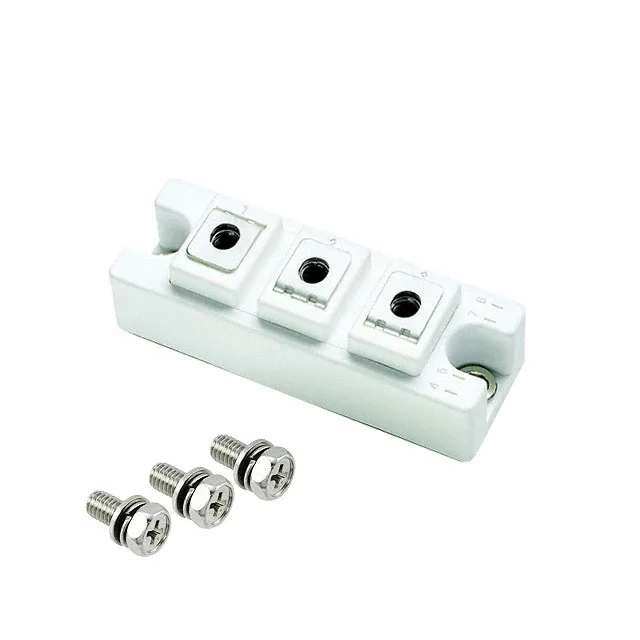

DIODE MODULE GP 1600V 200A S3
$76.4Ref. price · indicative, final on quote
PackagingS-3 Module
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Chassis Mount |
| Voltage - DC reverse (Vr) | 1600 V |
| Voltage - forward (Vf) (Max) @ if | 1.5 V @ 600 A |
| Current - reverse leakage @ vr | 500 µA @ 1600 V |
| Current - average rectified (Io) (per diode) | 200A |
| Operating temperature - junction | -40°C ~ 150°C |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Package | Bulk |
| Technology | Standard |
| Case | S-3 Module |
| Diode configuration | 1 Pair Common Cathode |
