Logic capacity and I/O budget for glue-logic consolidation

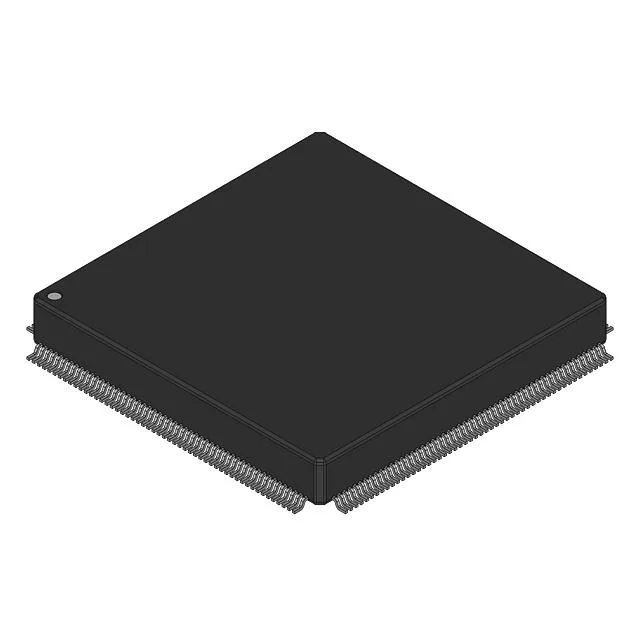

The OR3T807PS208-DB packs 116000 gates and 3872 logic cells in the ORCA™3C family — enough to absorb a handful of 74-series glue-logic devices or a small state machine into a single programmable fabric. The 171 user I/O cover a 100-pin header plus a parallel bus and some handshake lines without needing a larger package. On-chip RAM totals 63488 bits, enough for a small FIFO or register file between two clock domains without external SRAM. The 3 V supply rail matches legacy 3.3 V systems and modern 2.5 V cores with an external regulator.
Temp grade and what it means for the build
The part is at home in a lab instrument, a telecom line card in a climate-controlled rack, or a production tester. It does not carry the extended temp range for an outdoor enclosure or an unheated factory floor; if the ambient swings below freezing, the OR3T807PS208-DB is not the right call. No moisture-sensitive label warning means the bake step is likely skipped, but confirm the date code against the JEDEC floor-life table at receipt.
