3000 F energy storage for high-current backup and pulse applications

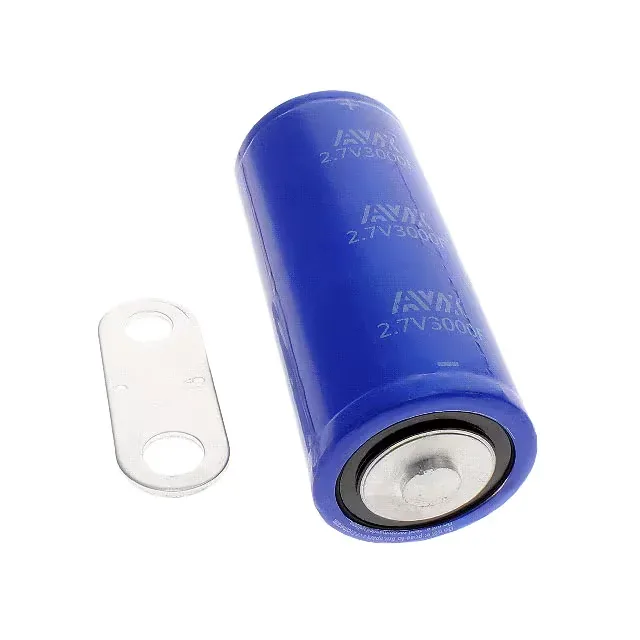

The KYOCERA AVX SCCZ1EB308SCB is a 3000 F supercapacitor from the SCC series, rated at 2.7 V with an ESR of 0.2 mOhm at 1 kHz. This combination of high capacitance and ultra-low ESR makes it suited for applications requiring short-duration, high-current pulses or backup power where batteries cannot deliver the peak current without voltage sag. The 0.2 mOhm ESR means the cell can deliver hundreds of amps for brief intervals with minimal internal voltage drop — a critical parameter for engine starting, UPS ride-through, or regenerative braking capture in industrial drives.
Chassis mount integration with weld stud terminals
The axial can package measures 60.0 mm diameter by 138.0 mm length and is designed for chassis mounting. The weld stud termination is intended for bolted or welded busbar connections that carry the full discharge current without the resistance of a crimp or screw terminal. Operating temperature spans -40°C to 65°C, with a rated lifetime of 1000 hours at 60°C. Derate the lifetime for continuous operation above 60°C — the 1000-hour figure is the endurance at the upper temperature limit, not the expected calendar life at room temperature.
The bulk packaging means units are shipped individually, not on tape-and-reel, consistent with the large can size and chassis-mount form factor.
