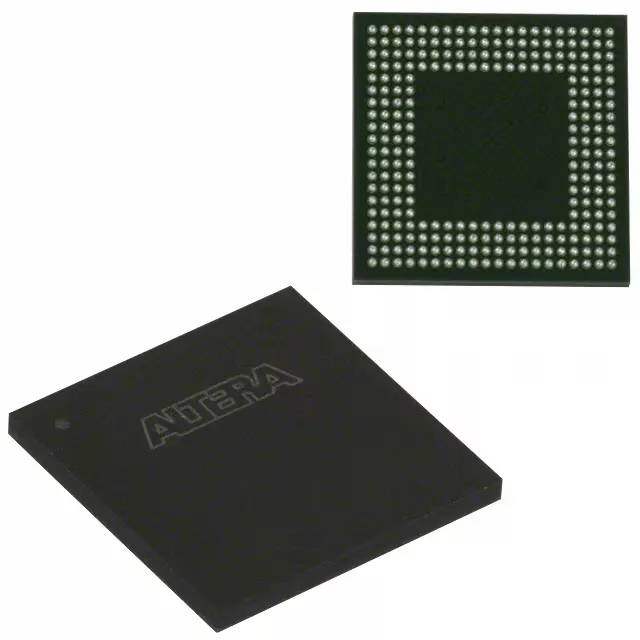

Intel/Altera MAX® II CPLD, EPM1270GM256I5N, 980 macrocells, 1270 logic elements, 212 I/O, 6.2 ns tpd(1) max, 1.71 V–1.89 V core, -40°C to 100°C, 256-TFBGA.
| Parameter | Value |
|---|---|
| Series | MAX® II |
| Mounting | Surface Mount |
| Programmable type | In System Programmable |
| Voltage supply - internal | 1.71V ~ 1.89V |
| Operating temperature | -40°C~100°C(TJ) |
| Package | Tray |
| Number of i (O) | 212 |
| Case | 256-TFBGA |
| Number of macrocells | 980 |
| Delay time tpd(1) max | 6.2 ns |
| Number of logic elements (Blocks) | 1270 |
980 macrocells handle medium-density glue logic. 212 I/O support wide parallel buses or multiple peripheral banks.
That's the industrial-plus range — outdoor base stations, factory-floor motor drives, and under-hood automotive auxiliary controllers all fall inside it. The 100°C TJ cap means the part can sit next to a hot regulator or processor without derating the I/O drive.
No last-time-buy window, no successor part number.
The suffix 'N' on the EPM1270GM256I5N typically indicates lead-free / RoHS-compliant finish. The EPM1270GM256I5 (without 'N') is the tin-lead version. Electrically and functionally they are identical, but the 'N' variant is the current standard for RoHS-required assemblies.
No. The EPM1270GM256I5N is an active part with no successor part number issued. If a design requires a different density or package, the MAX II family includes other options, but there is no direct replacement for this specific order code.
