Logic density and I/O budget for glue-logic integration
The 10M16DCF484C7G: 16,000 logic elements and 320 user I/O place this MAX 10 device in the mid-range of the family — enough to absorb a handful of 74-series glue-logic ICs, a small state machine, or a sensor interface bridge without an external CPLD or FPGA. The 562,176 total RAM bits provide on-chip storage for small FIFOs, coefficient look-up tables, or boot-pattern memory, reducing the need for external SRAM in many designs.
484-BGA footprint and board integration

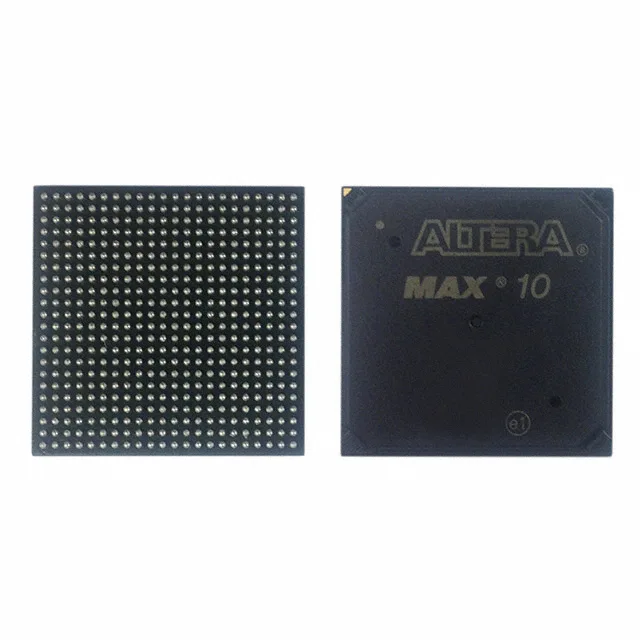

Housed in a 484-ball BGA with a 23x23 mm body, the package pitch is 0.8 mm — a standard density that routes out on a 4-layer board with via-in-pad or dog-bone fan-out. The core supply operates from a single 1.15V to 1.25V rail, which simplifies the power tree but demands a regulated supply; a raw battery or unregulated bus will not hold the tolerance. The commercial temperature grade (0°C to 85°C junction,) limits deployment to indoor, controlled-environment equipment — not rated for automotive or extended industrial ambient.
