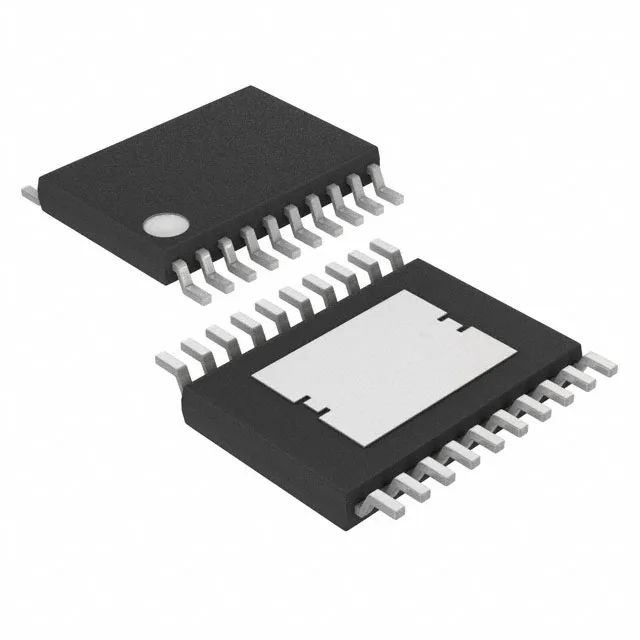

Analog Devices ADP5071AREZ-R7
MPNADP5071AREZ-R7
End of Life
IC REG BST SEPIC ADJ DL 20TSSOP
$22.18536Price · pay online now
Packaging20-TSSOP (0.173", 4.40mm Width) Exposed Pad
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Output type | Adjustable |
| Mounting | Surface Mount |
| Voltage - input | 2.85V |
| Voltage - output | ±39V |
| Voltage - output (Min (Fixed)) | 0.8V, 1.6V |
| Output current | 1.2A, 2A |
| Frequency - switching | 1.2MHz, 2.4MHz |
| I/O channels | 2 |
| Operating temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Function | Step-Up, Step-Up/Step-Down |
| Topology | Boost, SEPIC |
| Case | 20-TSSOP (0.173\", 4.40mm Width) Exposed Pad |
| Output configuration | Positive and Negative (Dual Rail) |
| Synchronous rectifier | No |
